Foil Drive Assist MAX x CODE Ultra High Modulus Bundle

Foil Drive Assist MAX x CODE Ultra High Modulus Bundle

The Foil Drive Assist MAX x CODE Ultra High Modulus Integrated Mast bundle combines the all-round performance of the Assist MAX with CODE’s Ultra High Modulus Integrated Mast for a powerful, refined hybrid setup. Delivering an ideal balance of thrust, runtime, and efficiency, this system unlocks longer sessions, reliable flatwater takeoffs, confident upwind and downwind riding, and effortless progression across conditions.

Note: This DOES NOT include a CODE Foils Ultra High Modulus Integrated Mast itself, please see your local CODE dealer or visit their website to purchase the Mast.

Note: Motor Position is fixed and cannot be adjusted

All the required Foil Drive components to go with a CODE Ultra High Modulus Integrated Mast. Please see the full product listings for product details, linked in the copy below.

A great bundle to suit your Code Ultra High Modulus Integrated Mast is:

€5.084,00
€5.084,00
⚡
Limited Time Offer Buy a complete Assist MAX Kit and get a FREE Sport Battery. Already riding MAX? Extra Sport Batteries are 25% off.
Tech Specs
icon
  • System Nominal Voltage: 40V
  • Battery Capacity Range: 332-594Wh
  • Max Thrust: 29kg / 63.9lbs
  • Top Power to Weight Ratio (Thrust/Weight): 5.7 N/KG
  • Minimum Install Weight*: 4.8kg / 10.5lbs with MAX Sport
  • Dimensions with Battery: L525x W125 x H50mm
  • Horsepower: 2.36HP
  • App Compatibility: Foil Drive App, Android and IOS
  • Water Rating: IP68 Water and Dust Resistance

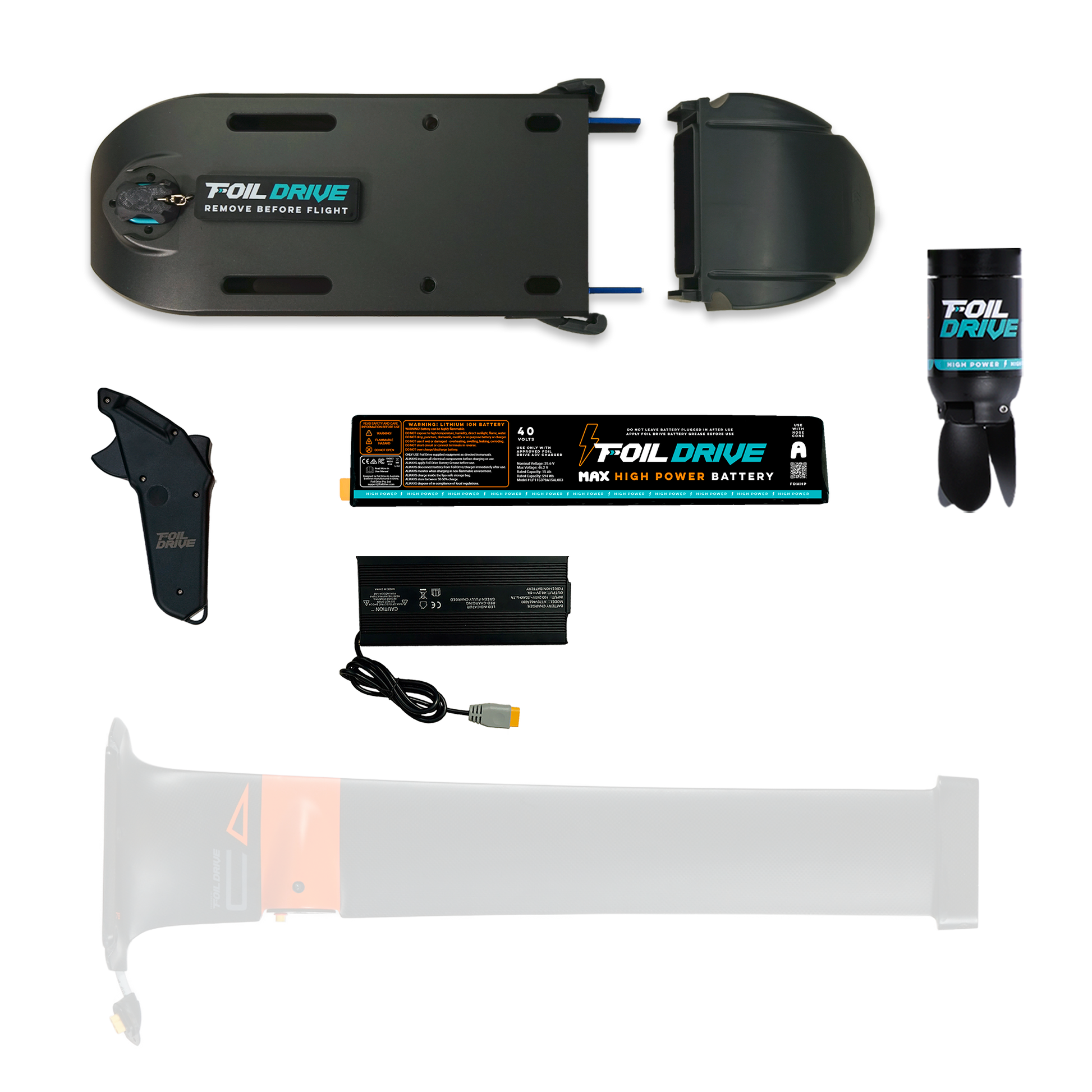

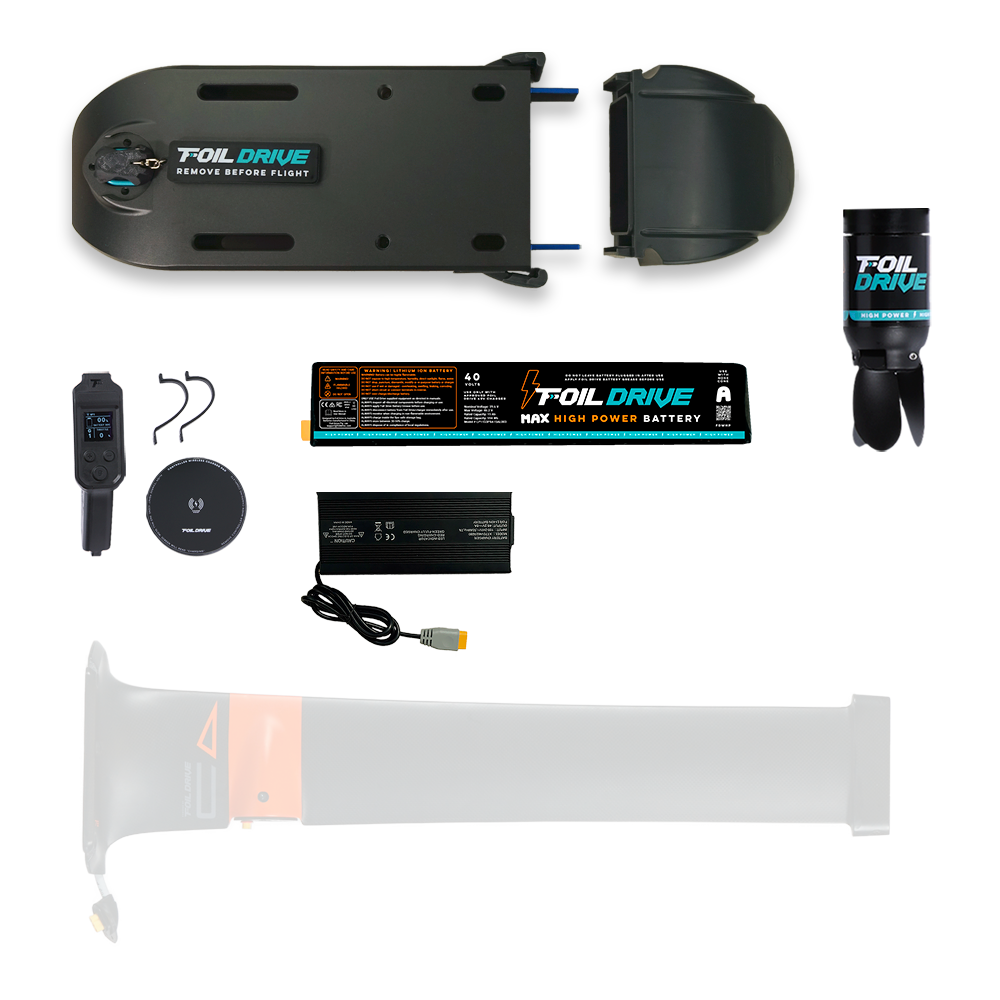

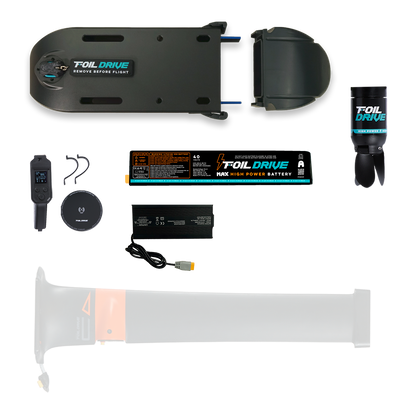

What’s Included
icon

Foil Drive Assist MAX

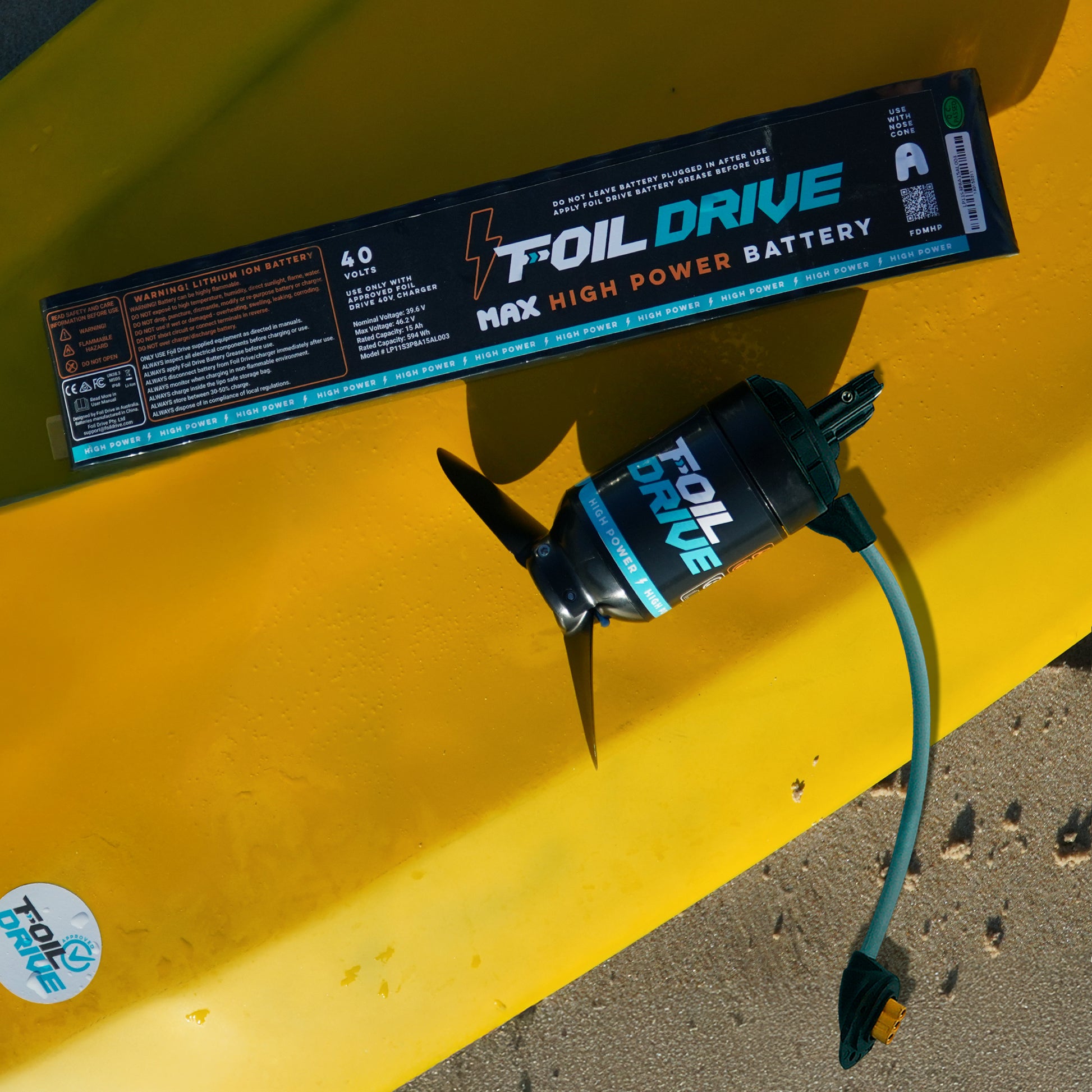

High Power Battery
Integrated Mast High Power Motor

Motor Plug Protector with Keychain
Foil Drive Nose Cone A
Foil Drive Nose Cone B

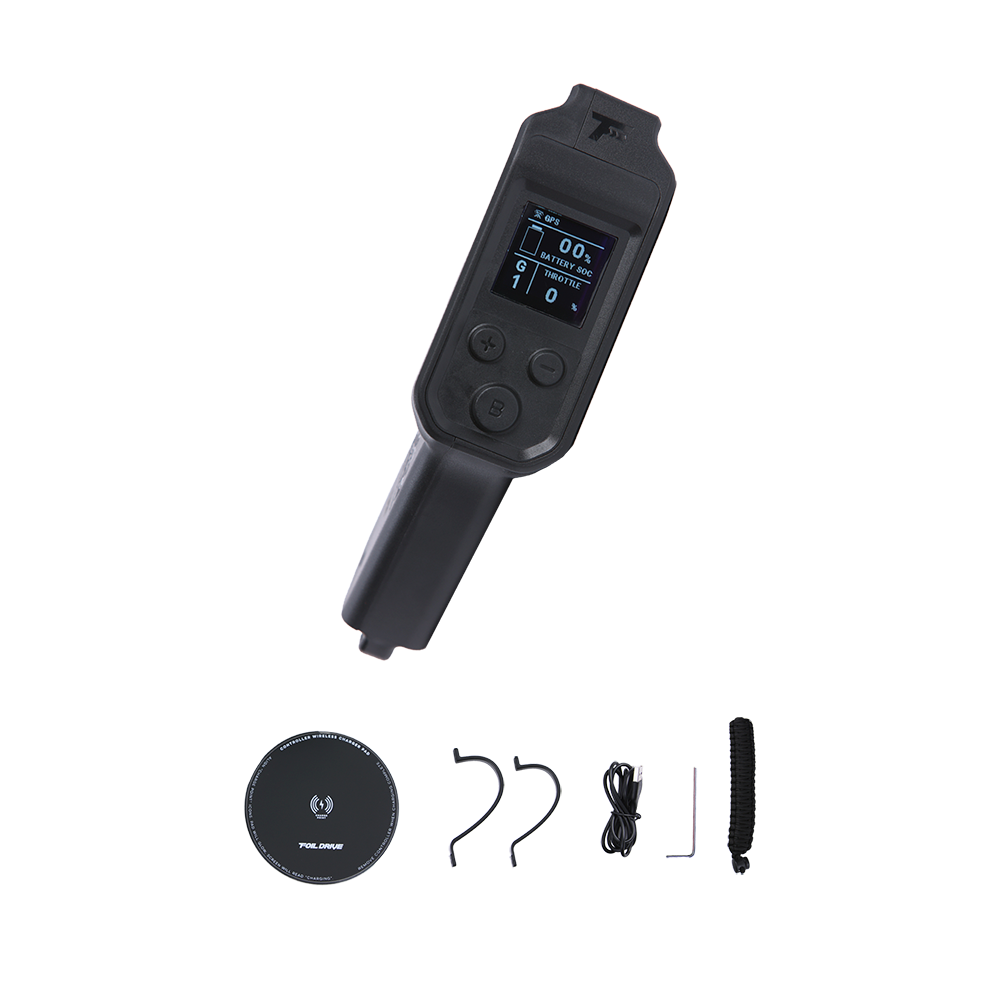

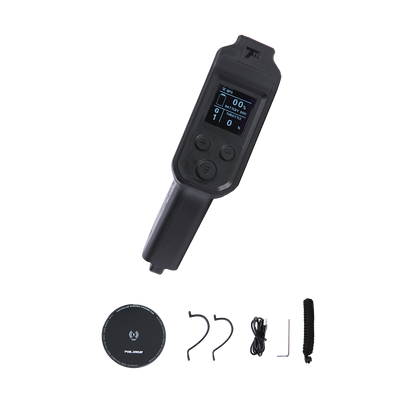

Foil Drive V3 Controller
Foil Drive Controller Wrist Strap
Foil Drive Controller Wireless Charge Pad
Micro USB Cable
40v Standard Foil Drive Charger 4amp
1x Mast Cable Guide 23cm each
2x Mast Track Foam Inserts
2x Nose Cone Rocker Pad
2x Battery Grease
4x M8 Assist MAX Mast Plate Bolts 80mm
4x M6 Assist MAX Mast Plate Bolts 80mm
Foil Drive 2.5mm Driver
Pick Tool
Torx T40 Tee Handle Driver
Torx T30 Tee Handle Driver
Foil Drive Cleaning Cloth

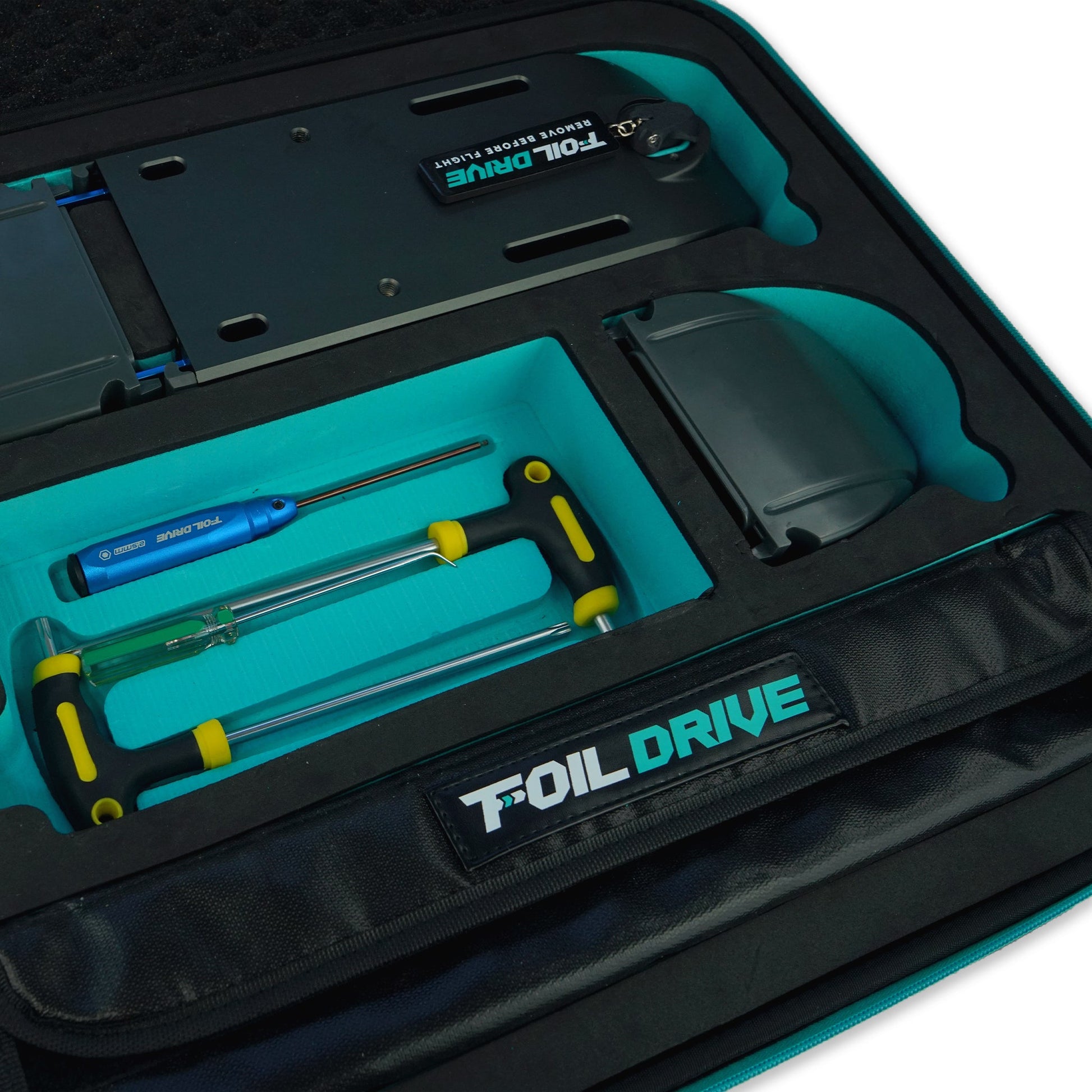

Foil Drive Gen2 Carry Case

Foil Drive Mounting Bolt Bag
- 4x M8 Locking Tee Nuts
- 4x M6 Locking Tee Nuts
- 4x M3 x 20mm Bolts for Locking Tee Nuts

Foil Drive Motor and Pod Bolts Bag
- 4x Motor Pod Bolts (M3 x 12mm)
- 3x Puck Bolts (M3 x 12mm)
- 3x Motor Plug Bolts (M4 x 10mm)

Spare Parts Bag
- 2x O-Ring Seals - Foil Drive Assist MAX
- 2x Latch Assembly - Foil Drive Assist MAX
- 3x Motor Plug Bolts (M3 x 12mm)
- 4x Motor Pod Bolts/Puck Bolts (M3 x 12mm)
- 4x Latch Locking Bolts (M3 x 16mm)
- 2x Propeller Bolts (M3 x 30mm)
- 2x Latch Pivot Bolts (M3 x 45mm)
