Electrify your foilS
Your Foil Drive is your one tool that can be used in many ways!
At Foil Drive, we focus on the electronics, that's what we do best! This leaves the boards and foils in the trusted hands of brand collaborations! If you're already a foiler, you can use your existing gear OR check out our "Brand Collaborations" for recommendations on where to get started completing your foiling setup!

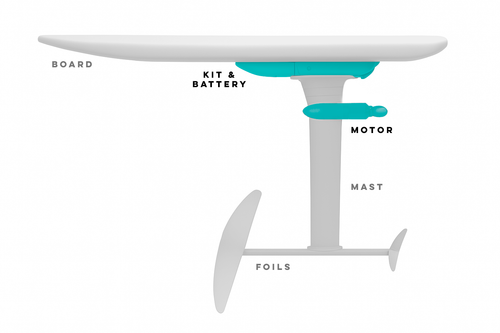

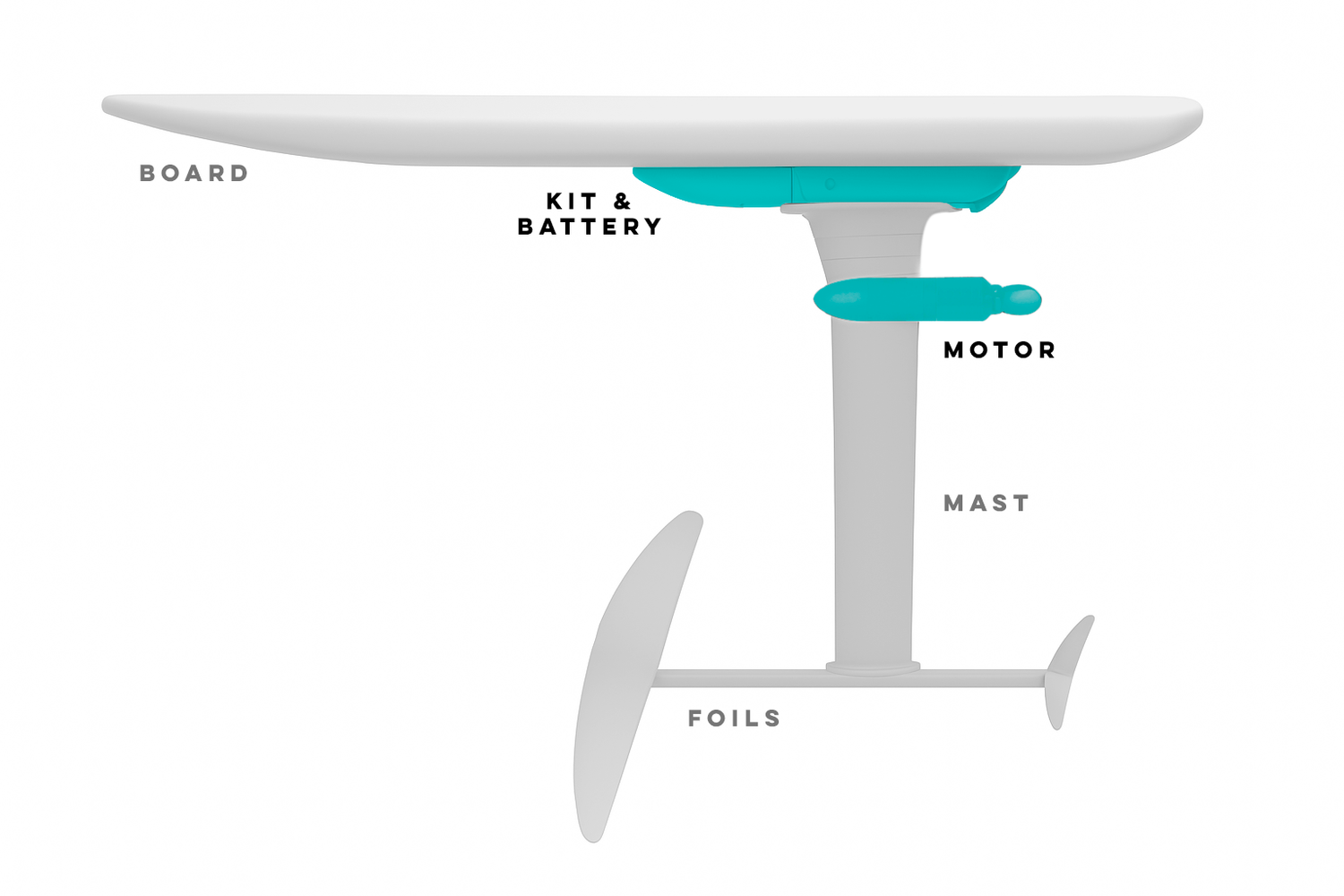

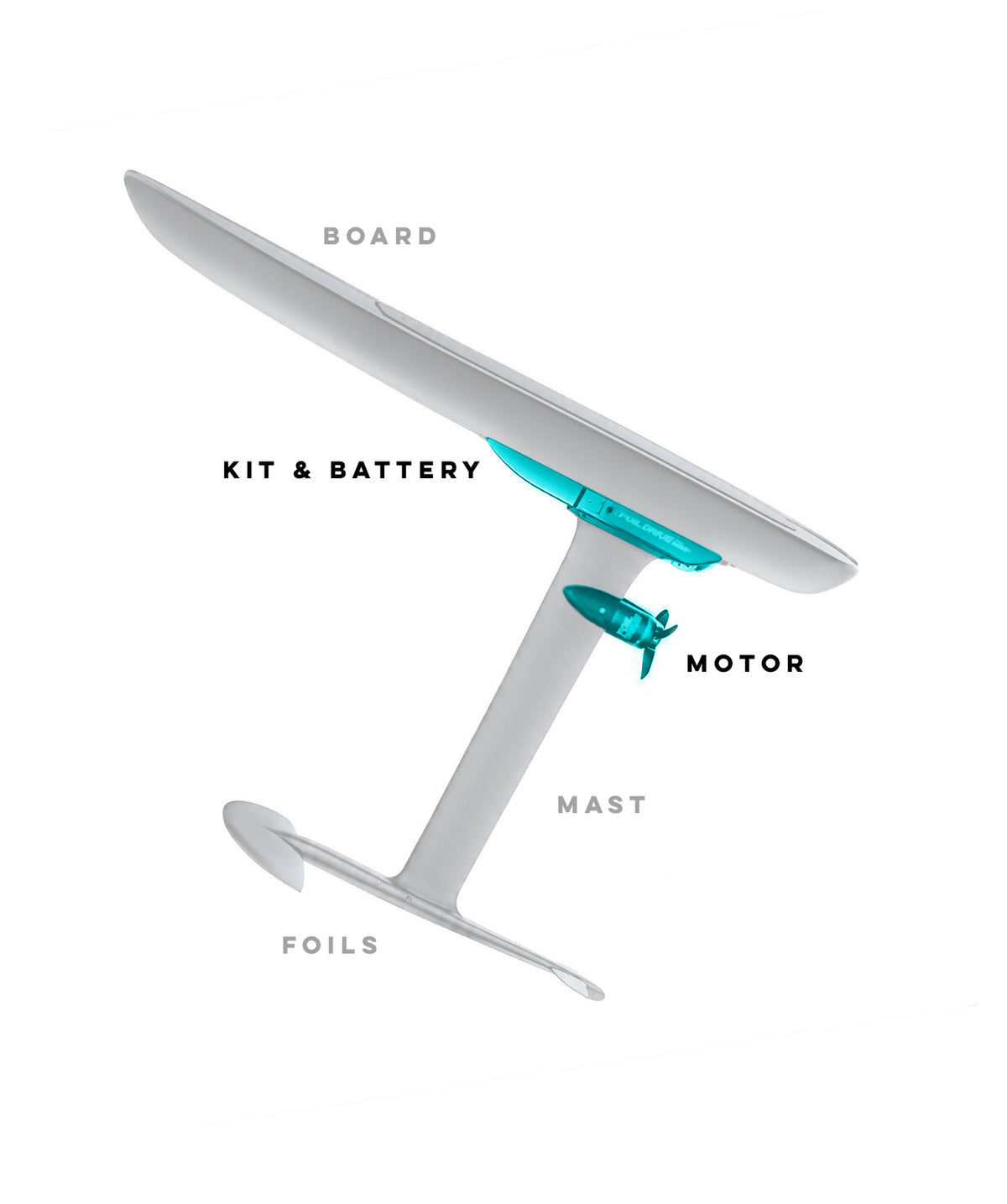

You'll need to get from Foil Drive the components in blue, and then choose your favourite foiling brand for boards and foils (grey). This level of customisation keeps your setup adaptable so it can grow with you, not see you grow out of it!
Not sure where to start? Follow the simple 4 Step Guide Below!
While there may seem like a few options, this is to allow the rider to fully customise specific to their ability and use case.
Step 1
Choose your System
Choose between two systems: Assist Slim, or Assist MAX, each with a unique balance of runtime, weight and power output depending on your prioritisation.

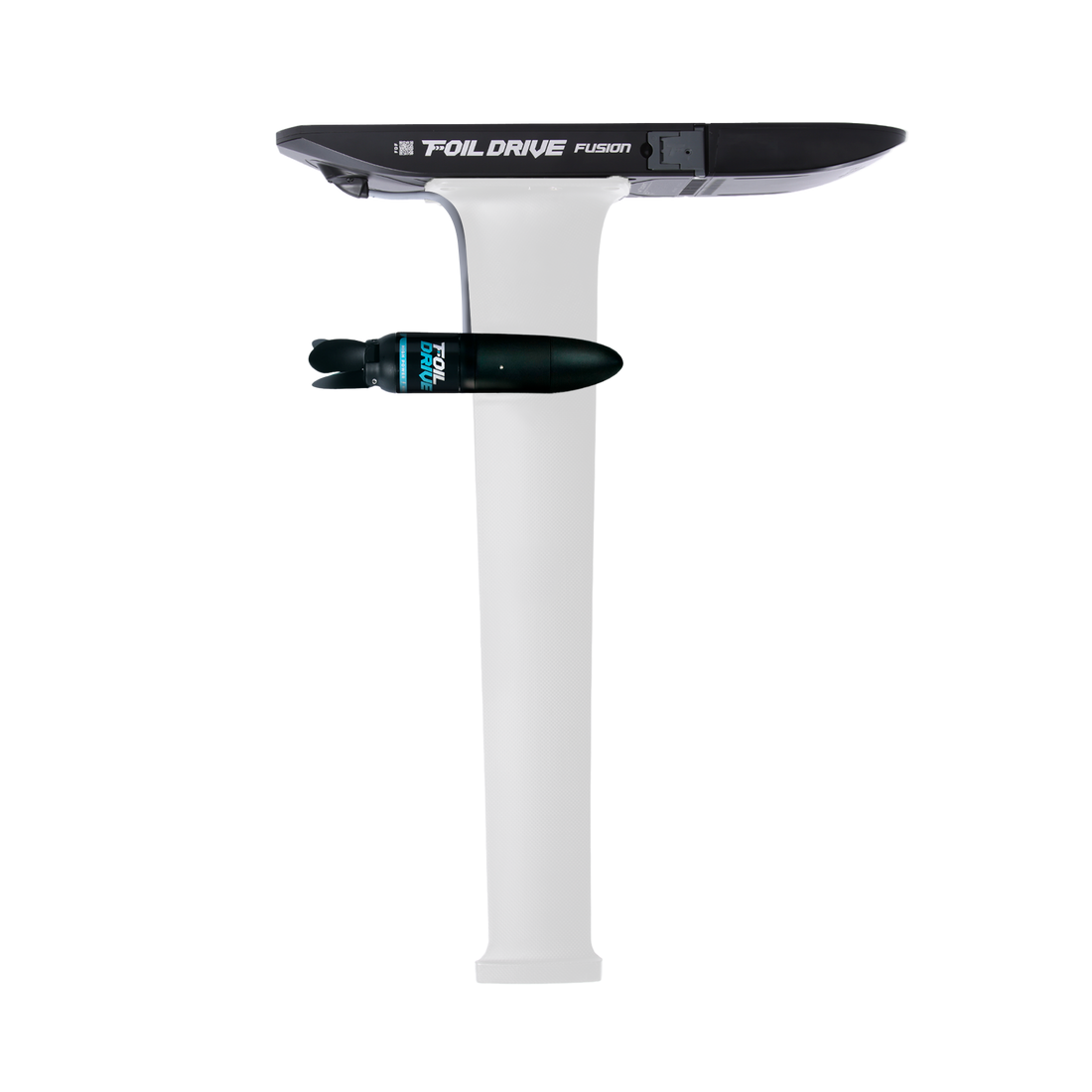

Fusion
The power and runtime of an efoil, the lightness and adaptability of an assist
one tool with endless possibilities.
- Where foil assist meets efoil
- One tool with endless possibilities
- Incredibly versatile, more power and runtime

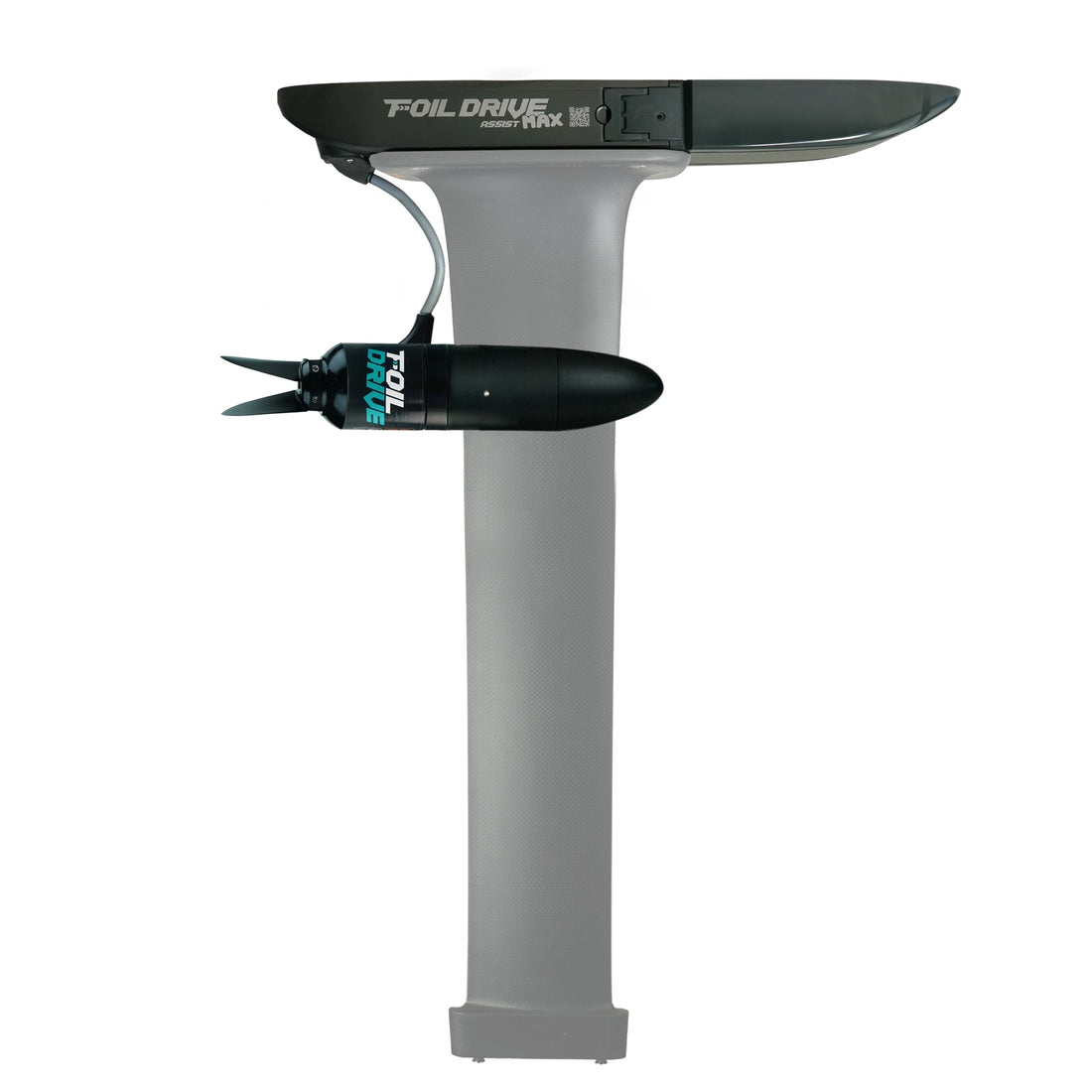

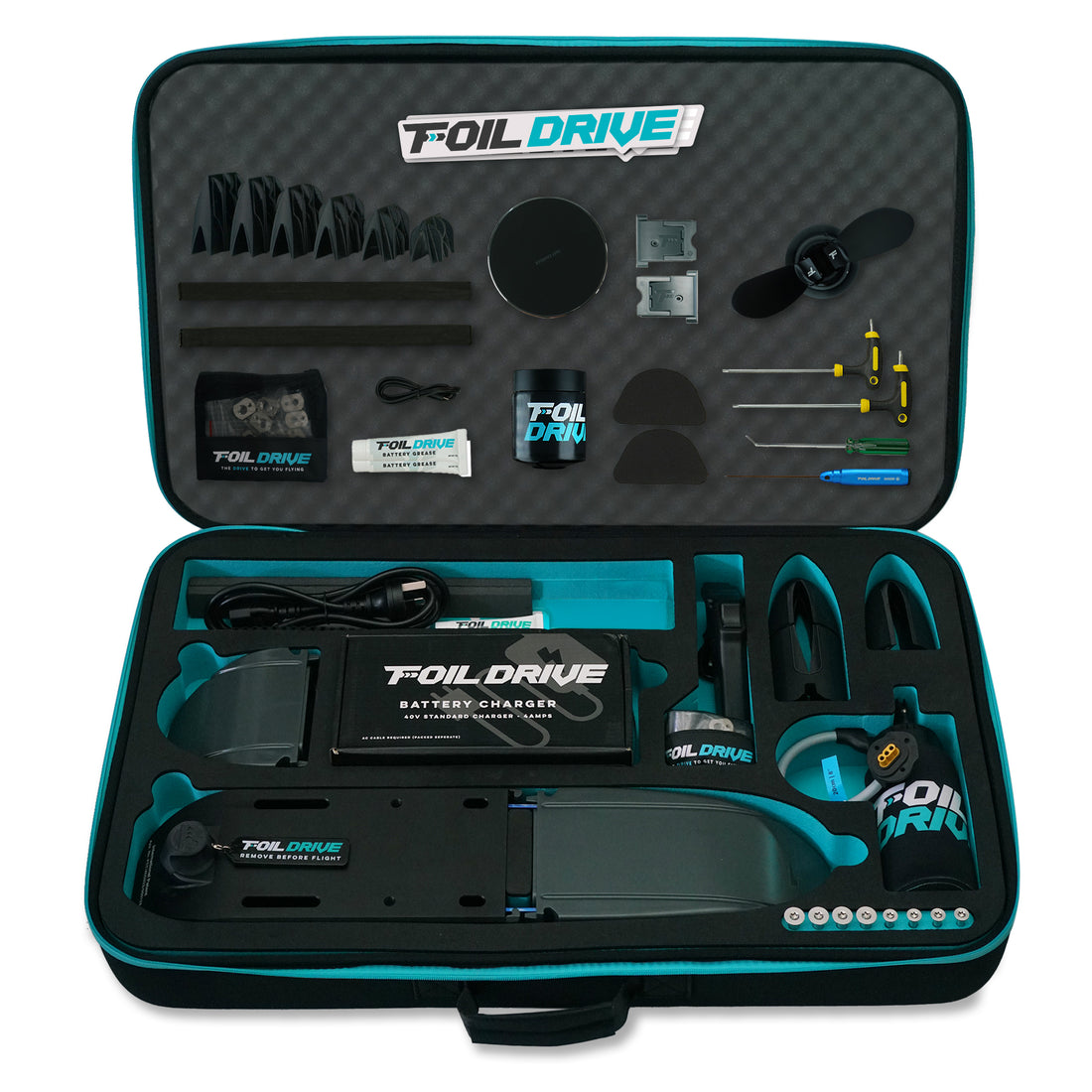

Assist MAX
The all-rounder, find the balance between runtime and performance-in-one.
- For ALL disciplines and abilities
- Perfect blend of runtime and performance
- Electric Assist without limits

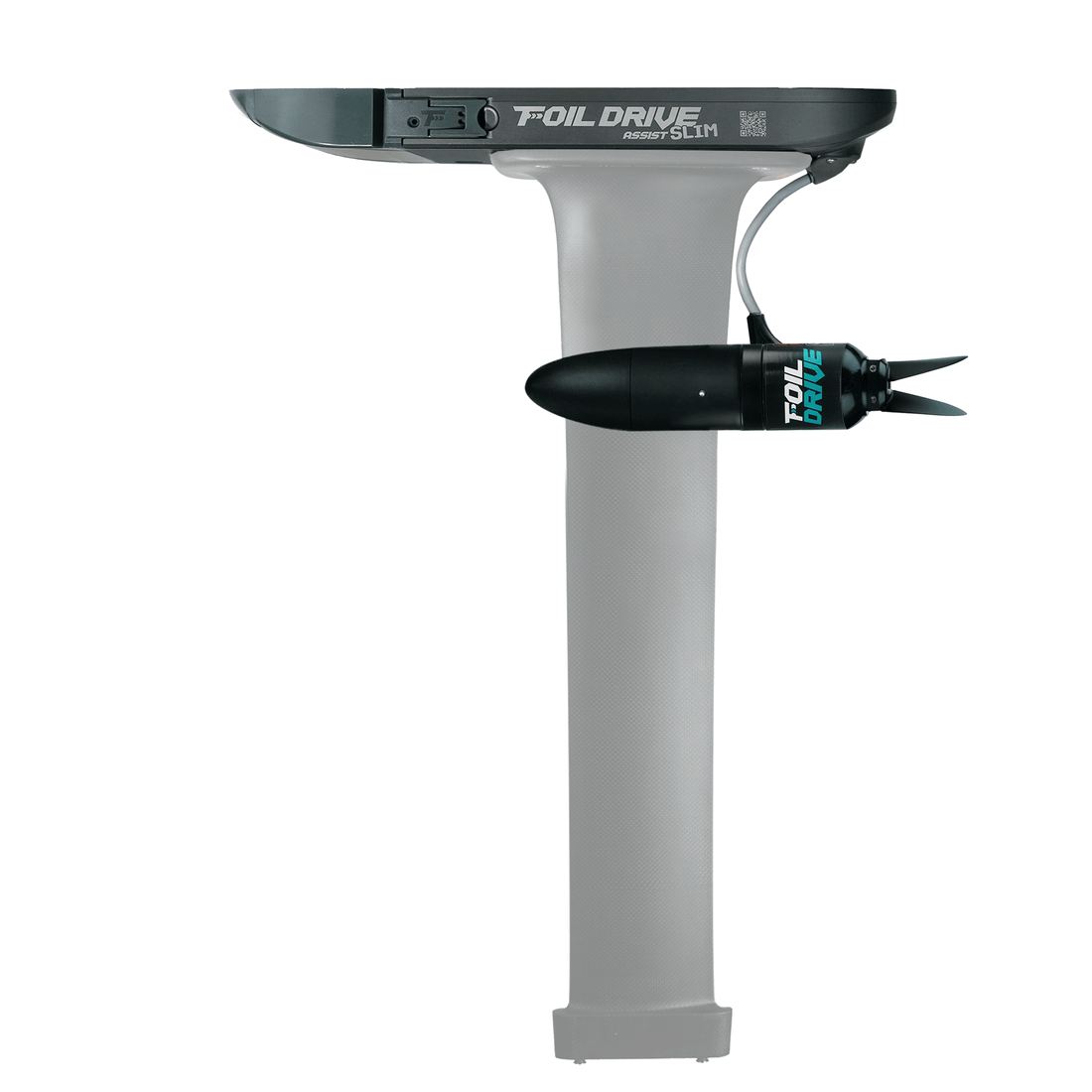

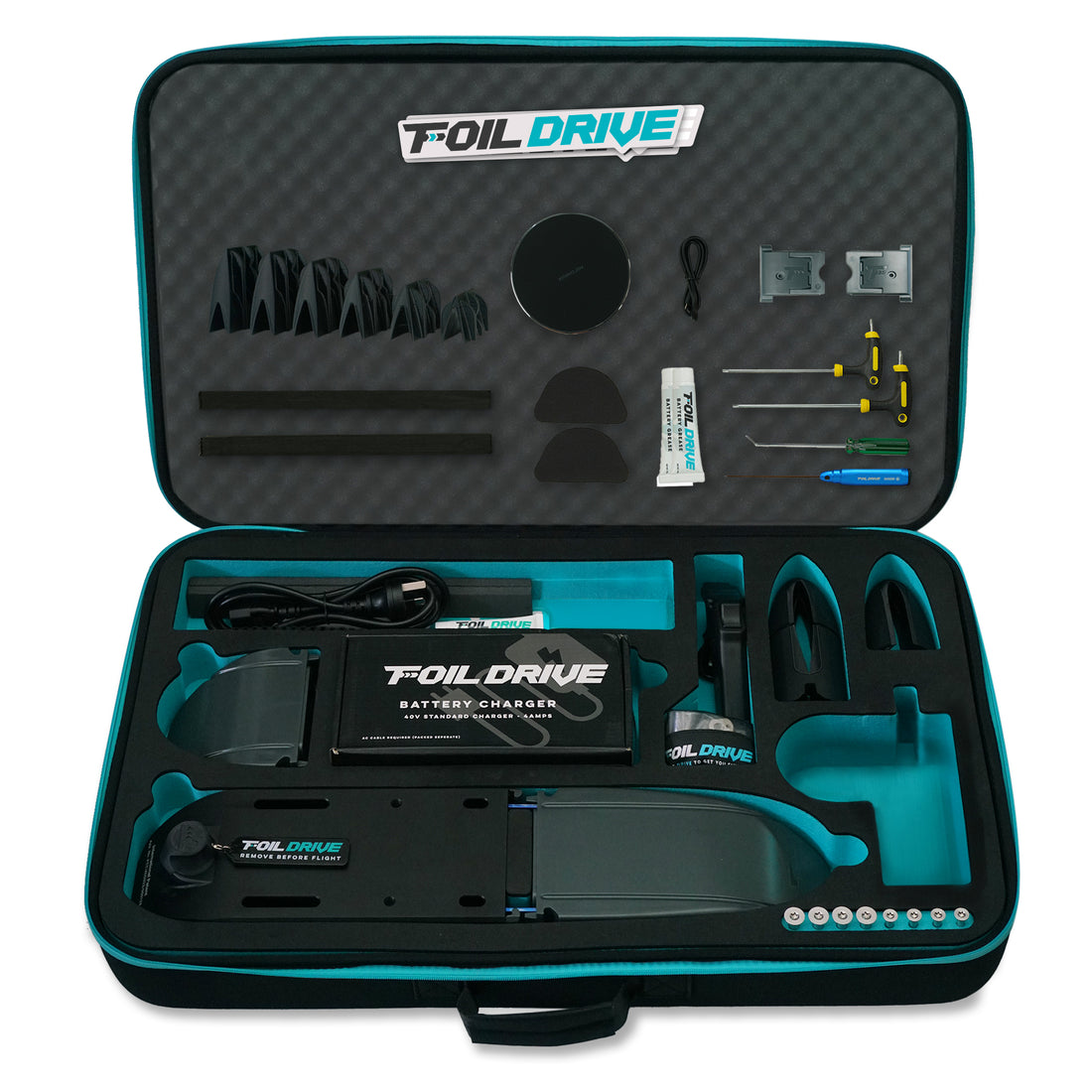

Assist Slim
There when you need it, gone when you don't. Unmatched, lightweight performance.
- Ultra-light and low drag
- Gives just enough lift to pop up and ride
- Keeps the pure foil sensation under your feet
- For Assisted pop-ups and proficient riders
Frequently Asked Questions
What’s the difference between Assist Slim and Assist Max?
Assist Slim is lighter and ideal for shorter, more agile sessions, while Assist MAX offers more power and longer ride time.
The Slim is perfect when you want minimal weight and simple assisted performance, while the MAX provides a balanced mix of power, runtime, and versatility for a wider range of riding styles.
What’s the difference between Assist MAX and Fusion?
The Assist MAX is the all-rounder that balances power, weight, and runtime for all riders and disciplines. It is lighter and more versatile, making it ideal for everyday use and travel. The Fusion provides maximum power and runtime, offering eFoil-like performance for longer sessions or heavier riders, but it is heavier overall.
How do I know which kit is right for me?
Each Foil Drive system offers a different balance of weight, power, and runtime.
Assist Slim is generally for the performance rider wanting assisted pop-ups only.
The Assist MAX provides a balance of power and endurance for all-round use.
Still Unsure?
Check out our dealer page or events page to try one in the water!
Step 2
Choose your Battery
Each system has different battery compatibility. The higher the capacity, the higher the runtime, however generally slightly more weight. Variables in Weight vs Capacity are available based on prioritisation of Performance vs Runtime.

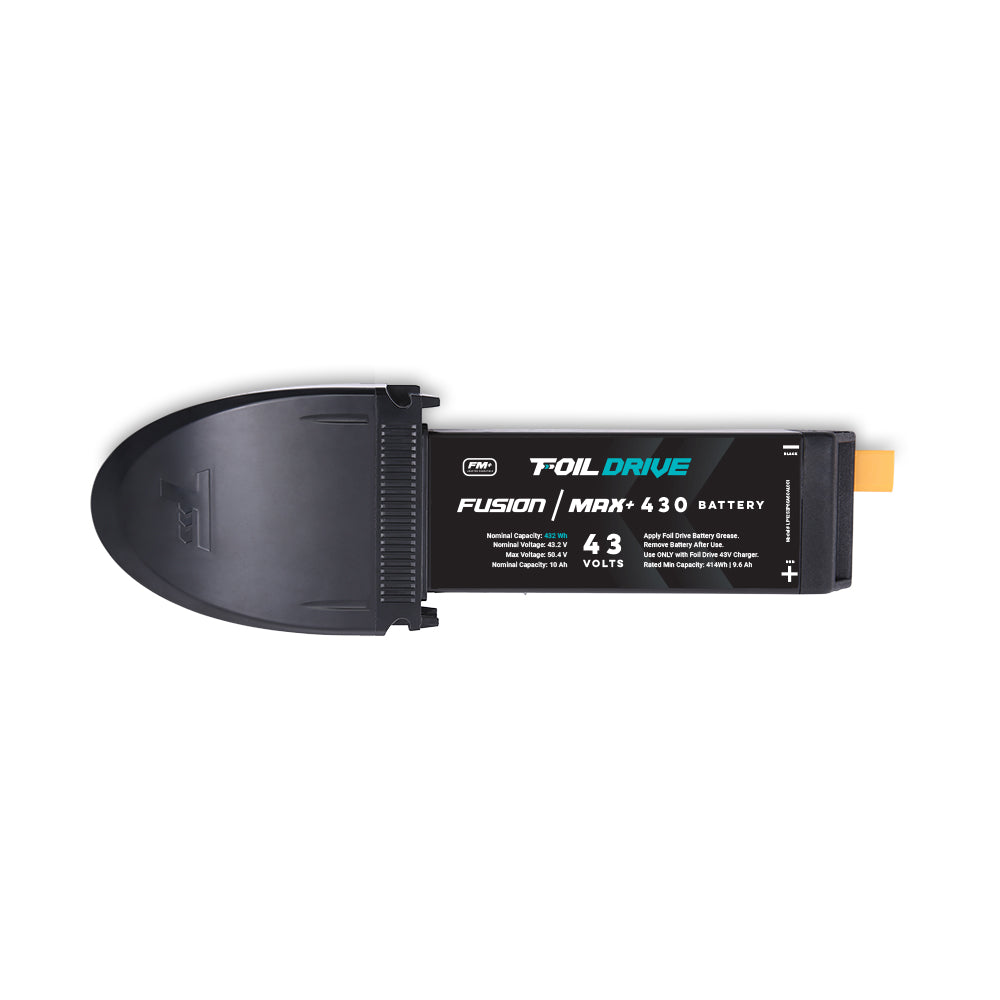

Fusion Battery
Our biggest and best battery, designed exclusively for the Fusion kit.
- Smart BMS connection to the APP
- Comes with a Battery Caddy with USB Port Discharging
- Double the runtime of the MAX Power battery
- Fully encased battery housing for IP68 waterproofing
- 864Wh | 43 Volts | 4.9kg or 10.8lbs

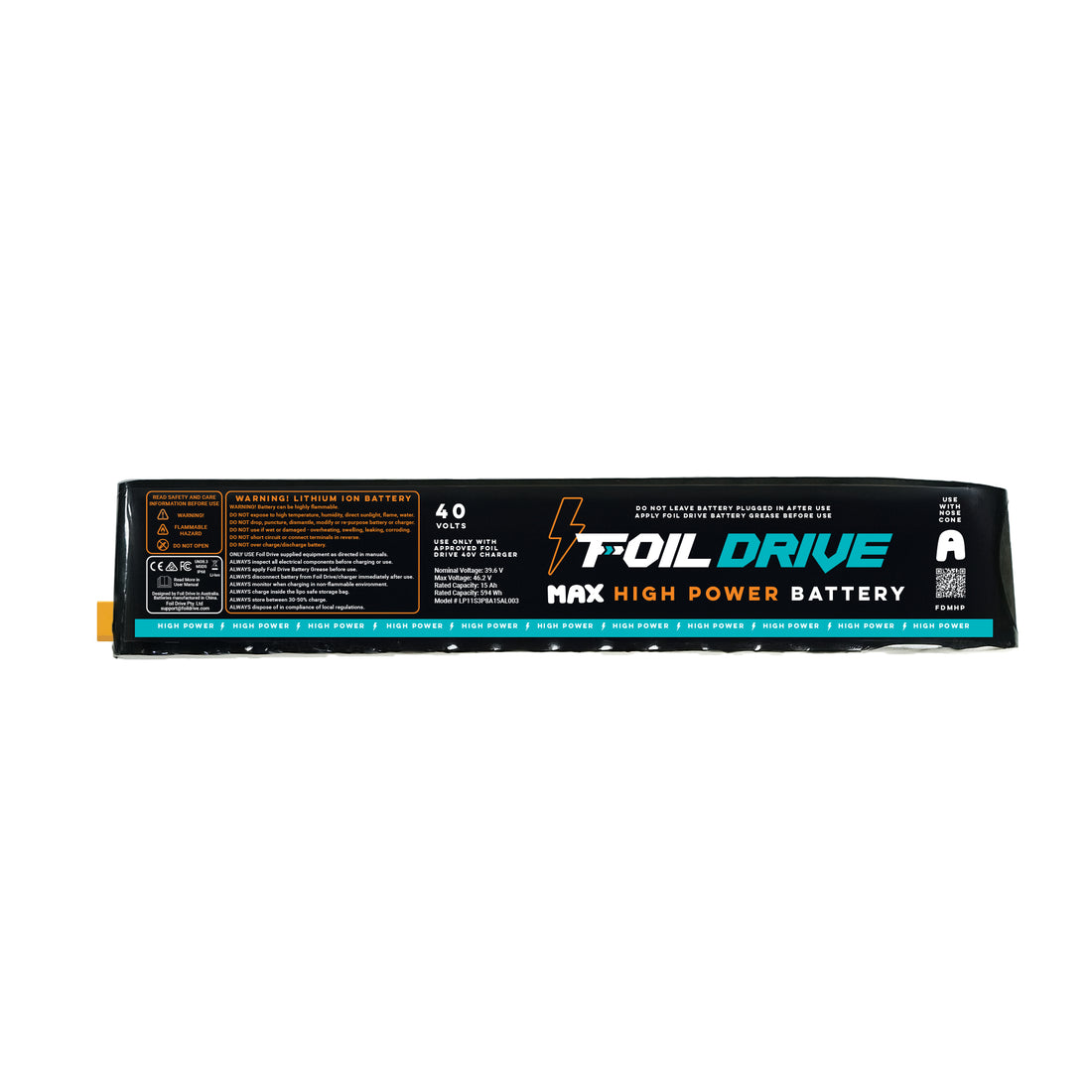

Max High Power
The ultimate battery for longer rides, more power, and peak performance.
- 19% more capacity for extended sessions
- Unlocks full +28% boost with High Power Motor
- Same compact size, just 100g heavier
- 594Wh | 40 Volts | 2.8kg or 6.1lbs

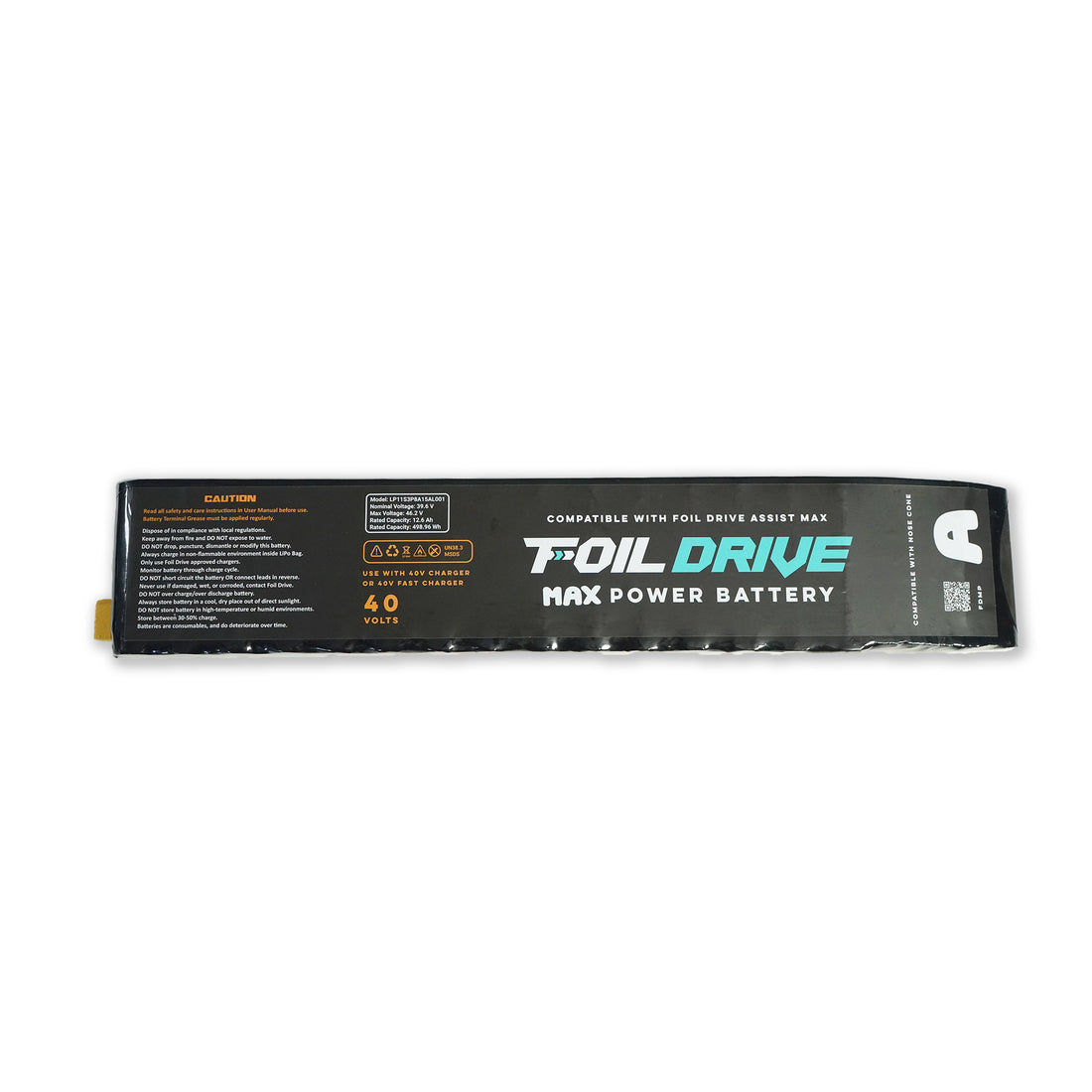

Max Power
Longer rides, fewer breaks: built for time on the water.
- Longer ride times for extended fun
- Reliable power for cruising or exploring
- Slightly heavier, but built for endurance
- 498Wh | 40 Volts | 2.68kg or 5.8lbs

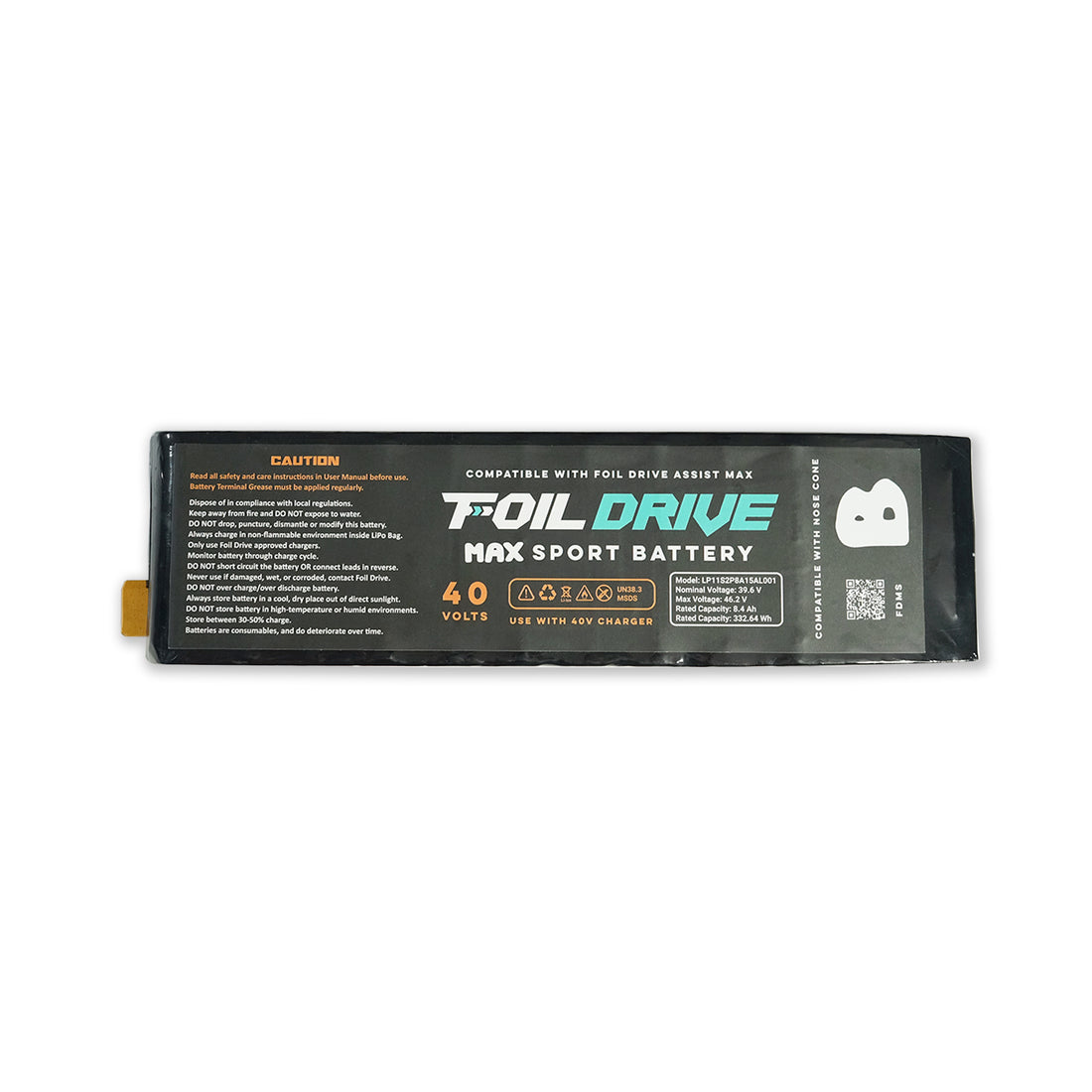

Max Sport
Ultra-light and responsive for riders chasing a pure, agile feel.
- Prioritises weight over runtime
- Keeps your setup light and playful
- Perfect for quick, high-energy sessions
- 3232Wh | 40 Volts | 1.8kg or 3.9lbs

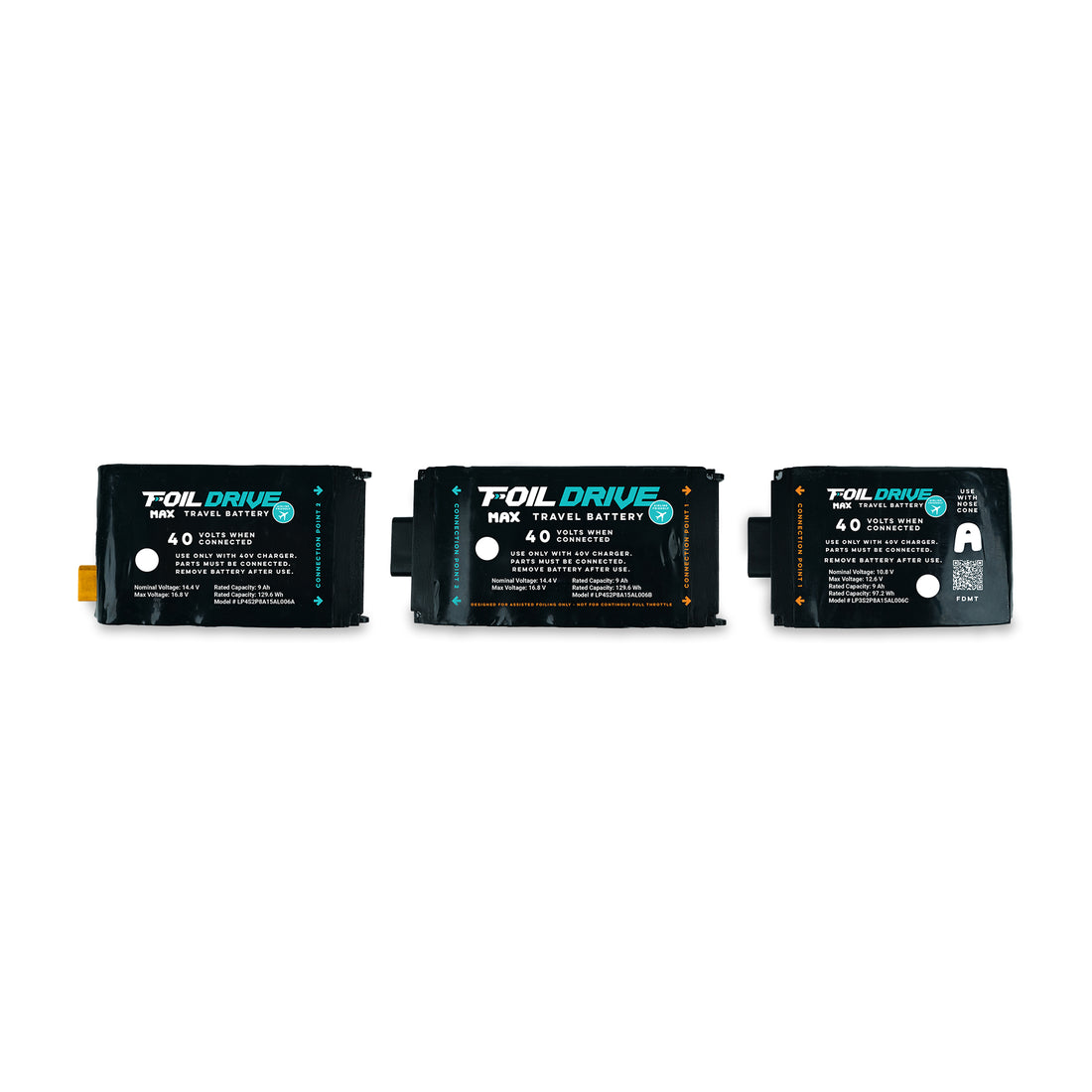

Max Travel
Flight-friendly. Made for foiling adventures anywhere.
- Meets airline travel requirements
- Ideal for travel sessions worldwide
- 356Wh | 40 Volts | 2.65kg or 5.8lbs

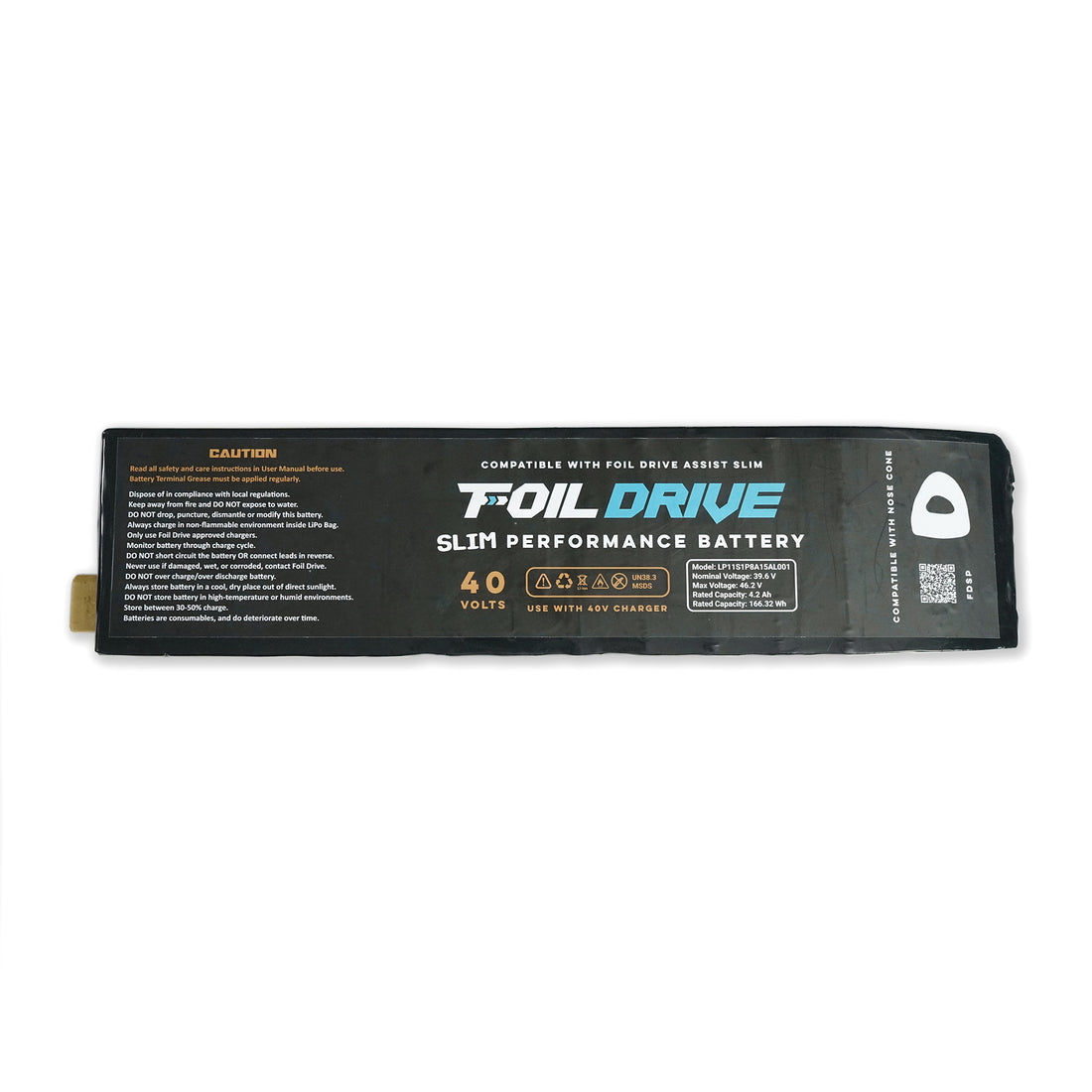

Slim Performance
Lightweight and punchy for a fast, responsive ride.
- Prioritises performance over runtime
- Keeps your setup ultra-light and simple
- Ideal for quick, high-energy sessions
- Delivers instant power when you need it
- 166Wh | 40 Volts | 1kg or 2.2lbs

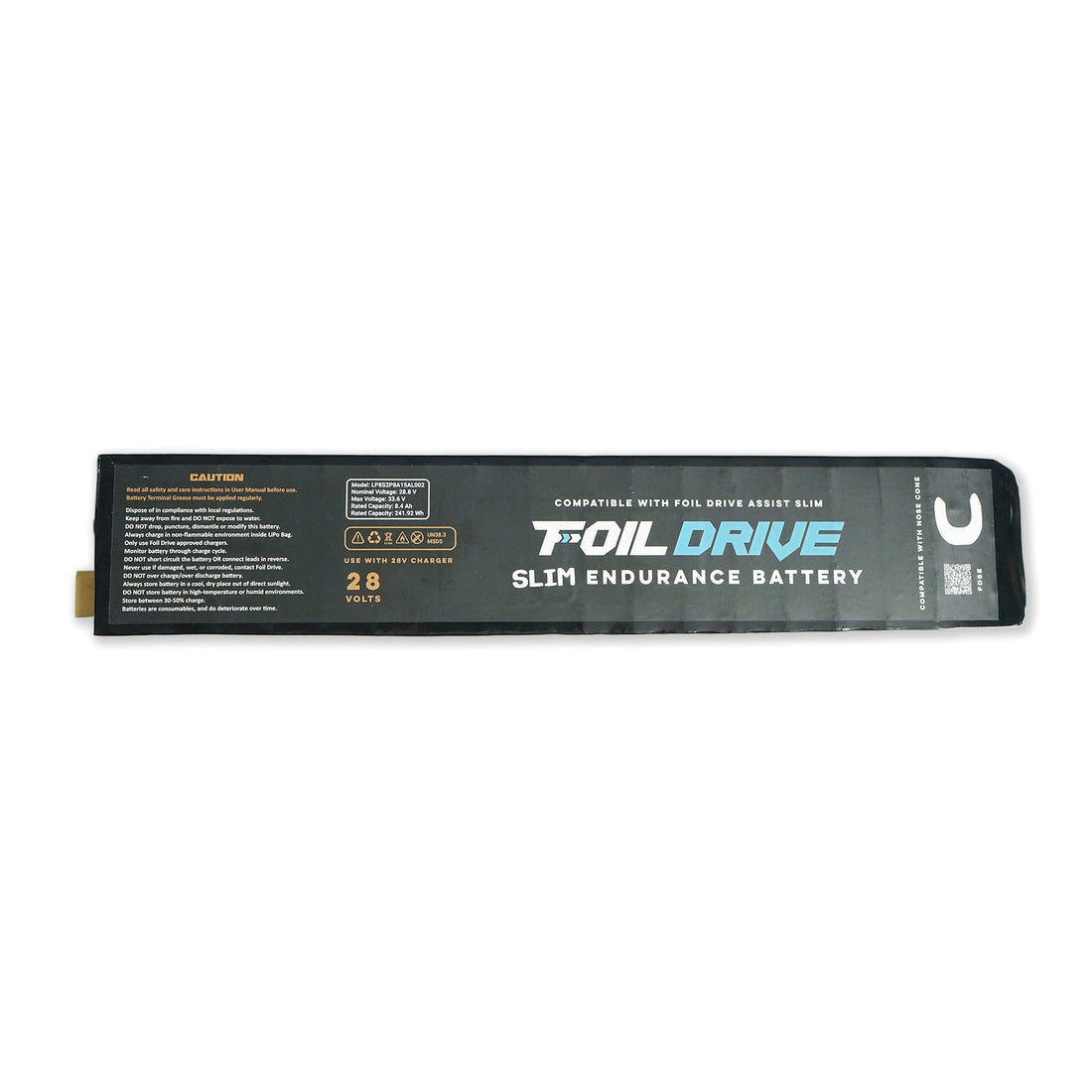

Slim Endurance
Longer rides, fewer breaks: built for time on the water.
- Longer ride times for extended fun
- Reliable power for cruising or exploring
- Slightly heavier, but built for endurance
- 241Wh | 28 Volts | 1.4kg or 3lbs

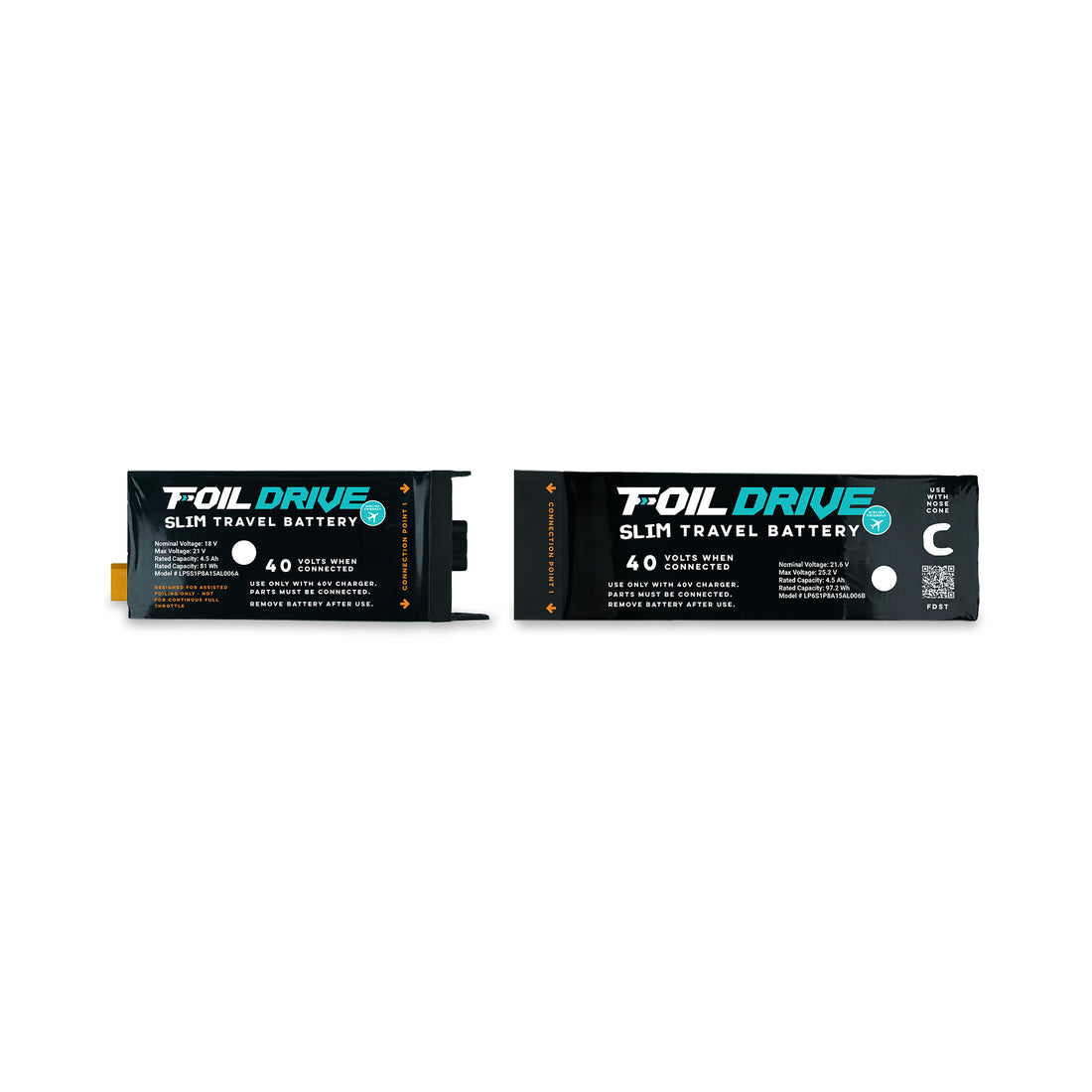

Slim Travel
Flight-friendly. Made for foiling adventures anywhere.
- Meets airline travel requirements
- Ideal for travel sessions worldwide
- 178Wh | 40 Volts | 1kg or 2.2lbs
Frequently Asked Questions
Why are there different batteries?
A higher capacity means a higher runtime. With higher capacity often comes a little more weight. Riders can choose what kind of runtime vs weight they are wanting to really refine their setup.
Are the batteries waterproof?
Yes, all Gen2 Batteries are IP64 rated when used as directed. Foil Drive Battery Grease is provided with your system and must be applied to the plug of the battery to fully waterproof your battery! While they are waterproof, batteries should be handled with care around water, see your user manual for more.
Can I take batteries on a plane?
Airlines have strict requirements about travelling with batteries that are constantly changing. Only our Travel batteries are designed to meet these requirements, but make sure to check with the airline before travelling as regulations can change.
Step 3
Choose your Motor & Mast
Tailored to suit
Your motor setup is highly customisable. Every rider, style, and session is a little different and Foil Drive is designed with versatility in mind.
Your motor height
Motor Height - Assist
Assist Motors are positioned near the board or mast plate, they offer just enough motor time to get on foil then it disappears. Once on foil, the rider then uses natural forces like swell, wind or human pump power to maintain glide.
- 12 - 15 cm: For riders who want pure uninterrupted glide once on foil. The motor spends most of its time out of the water, only there to get you going. Perfect for surf, wing, and downwind where you just need a boost to get up, then want the motor out of the way.
- 20 cm: The go-to all-rounder. Great balance of time on motor, and clearance on the mast. Ideal for mixed conditions or riders exploring their style. This position is also great for down winding, the extra length combats choppy water ensuring your motor gives enough traction!
- 25 cm: A friendly motor height keeps things stable while learning or switching between waves and flatwater.
Motor Height - Efoil
In Efoil Mode, the motor is always on in the water, perfect for effortless foiling! Efoil Motors are positioned down the bottom of the mast, near the fuselage and foils.
- 60 - 70 cm: If you are using the Universal Mast Adaptor, your motor cable should be 10cm shorter than your mast to allow the propellers to clear the fuselage. Eg. If your mast is 70cm long, choose the 60cm efoil cable. Integrated Efoil Masts have a fixed height.

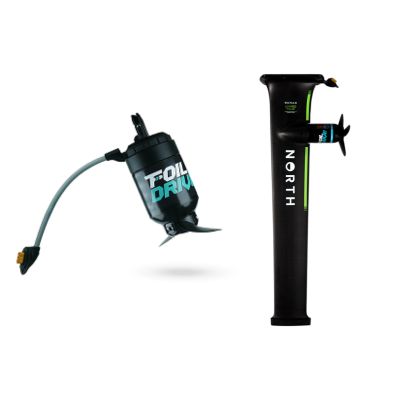

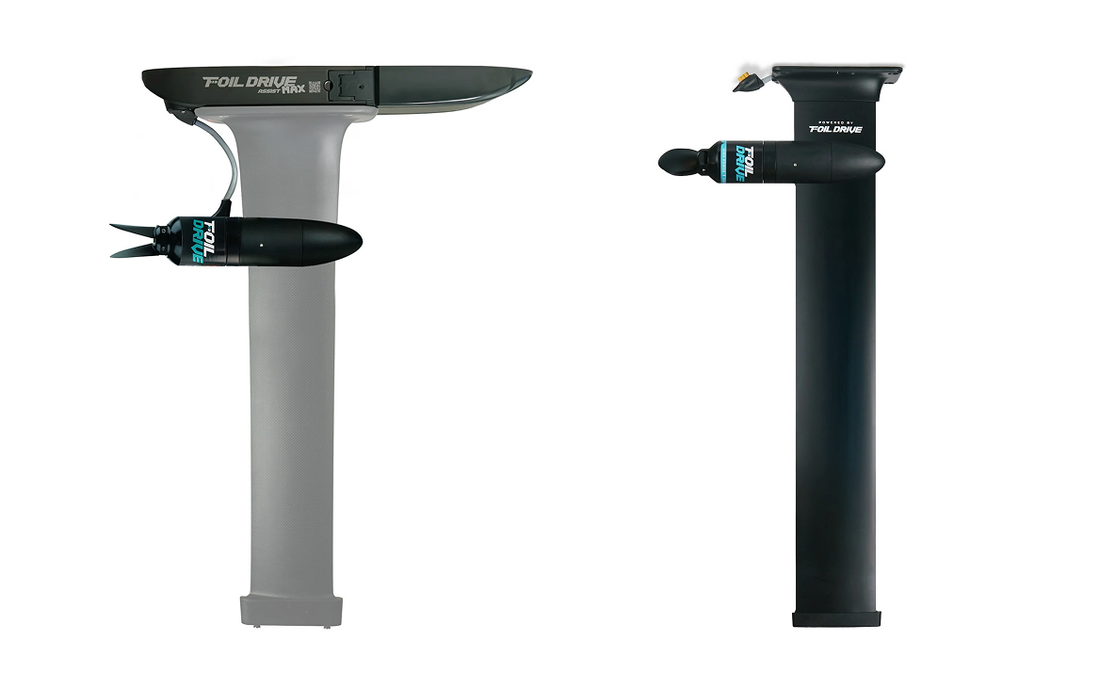

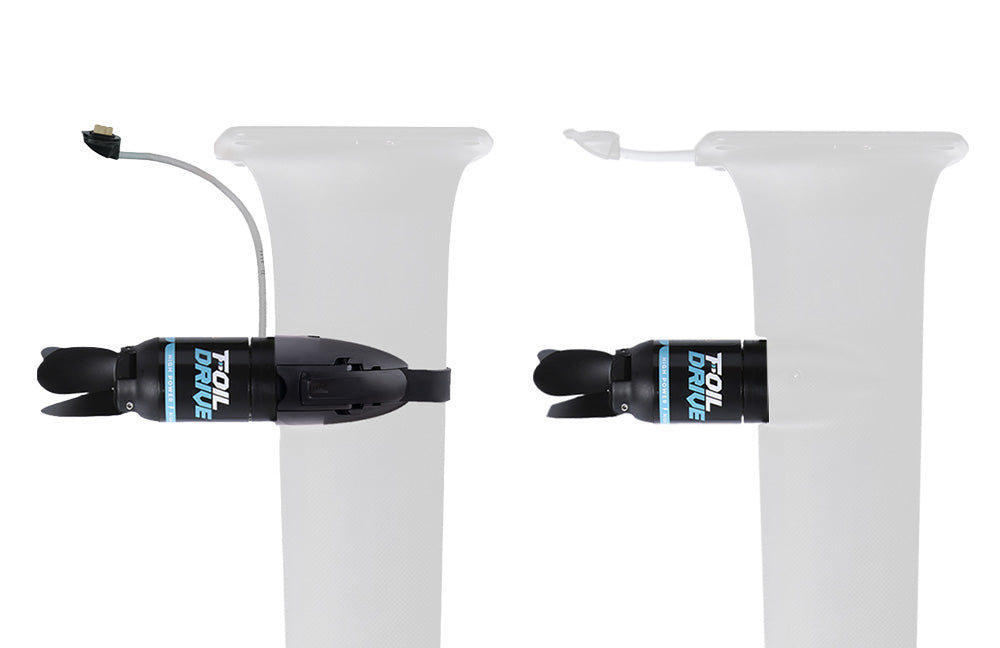

External vs integrated motors
External

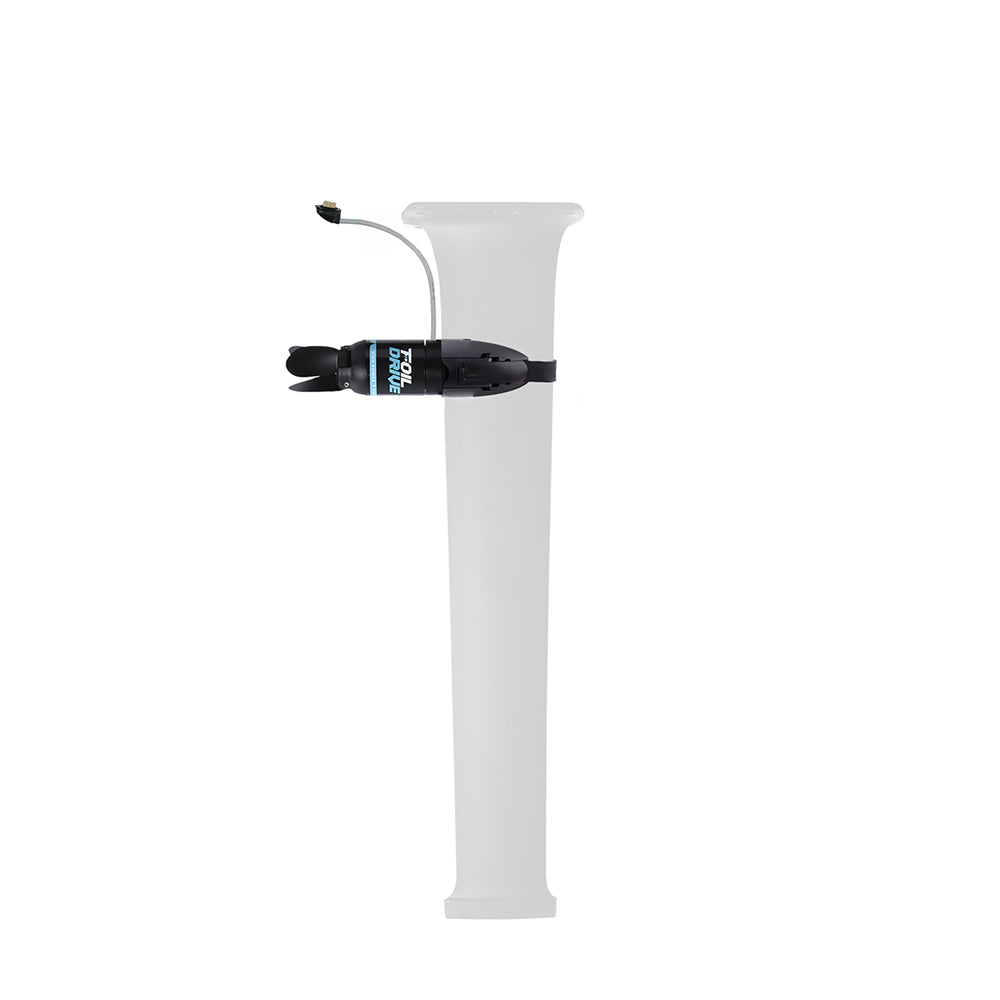

The Universal Adaptor can be fixed to any existing foil mast. It can be removed at any time and is a great entry level or adaptable option. The cable runs externally and is taped on keeping it adaptable. If you're unsure on motor height, or want to keep your mast available for traditional foiling, this is your option.
Integrated
A step up in performance, integrated masts are in collaboration with the leading foil brands to reduce drag, extend your ride time through efficiency and enhance ride feeling. Integrated masts have a fixed motor that cannot be removed.
Aluminium Masts are slightly more cost effective, whereas the Carbon is your premium selection!

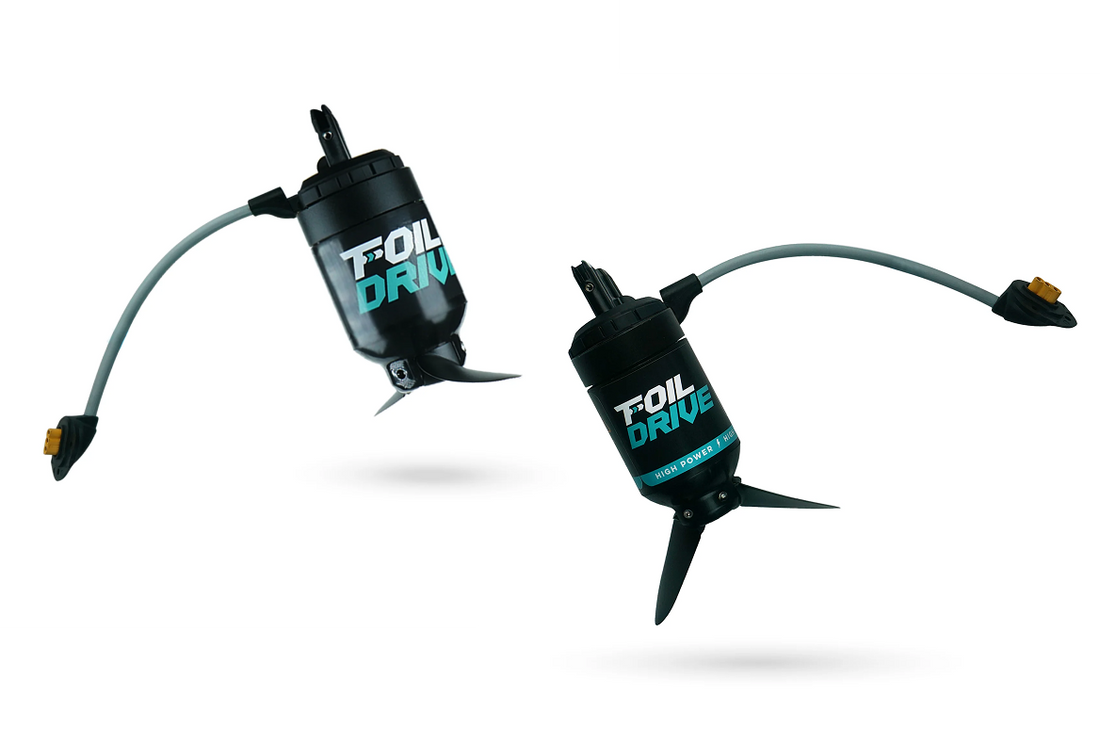

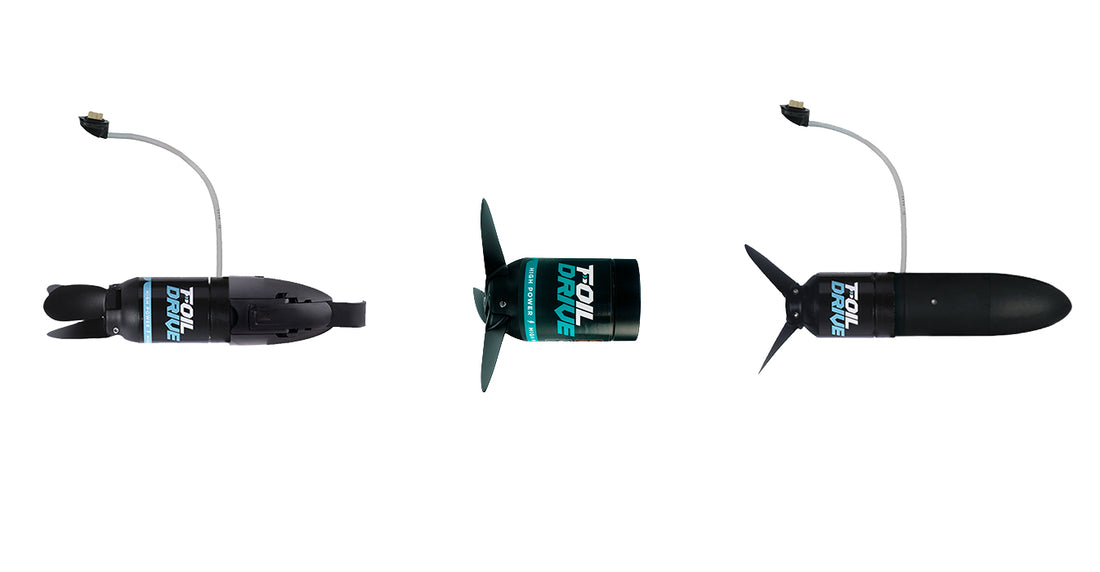

Motor type
Standard V2 Motor:
A Lightweight option, perfect for lighter riders.
High Power V2:
More torque and longer endurance. Great for heavier riders and longer rides. For only 130g of added weight, the High Power Motor improves efficiency by 20%... That's 20% more runtime!

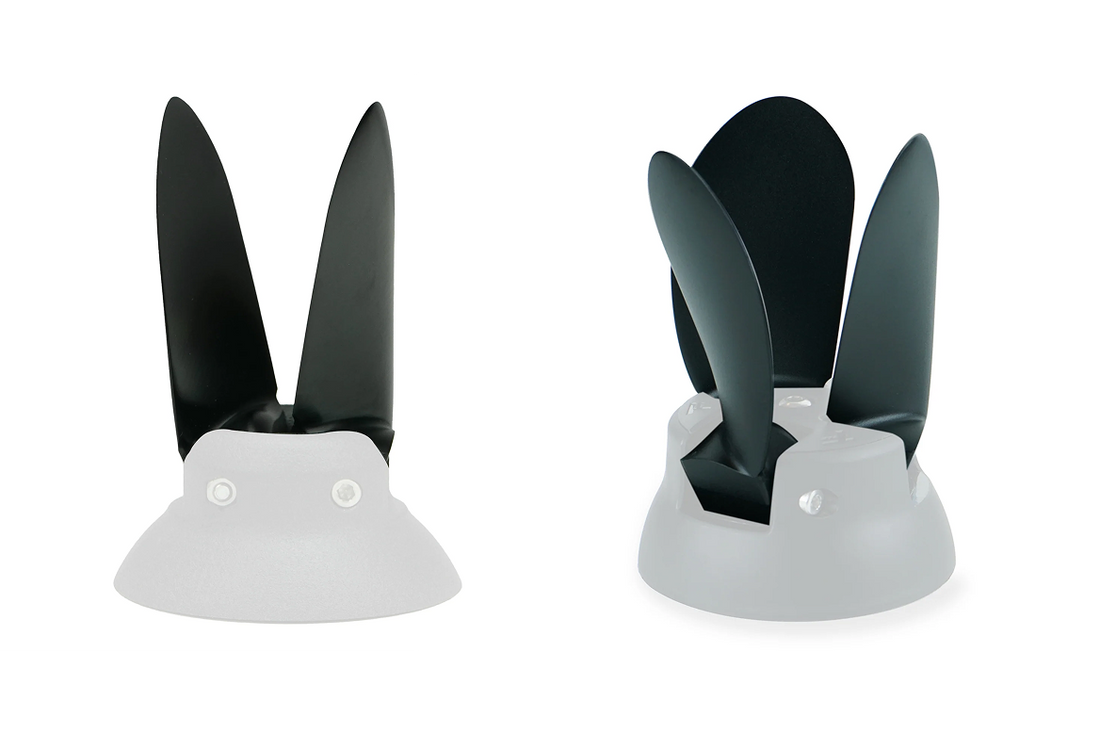

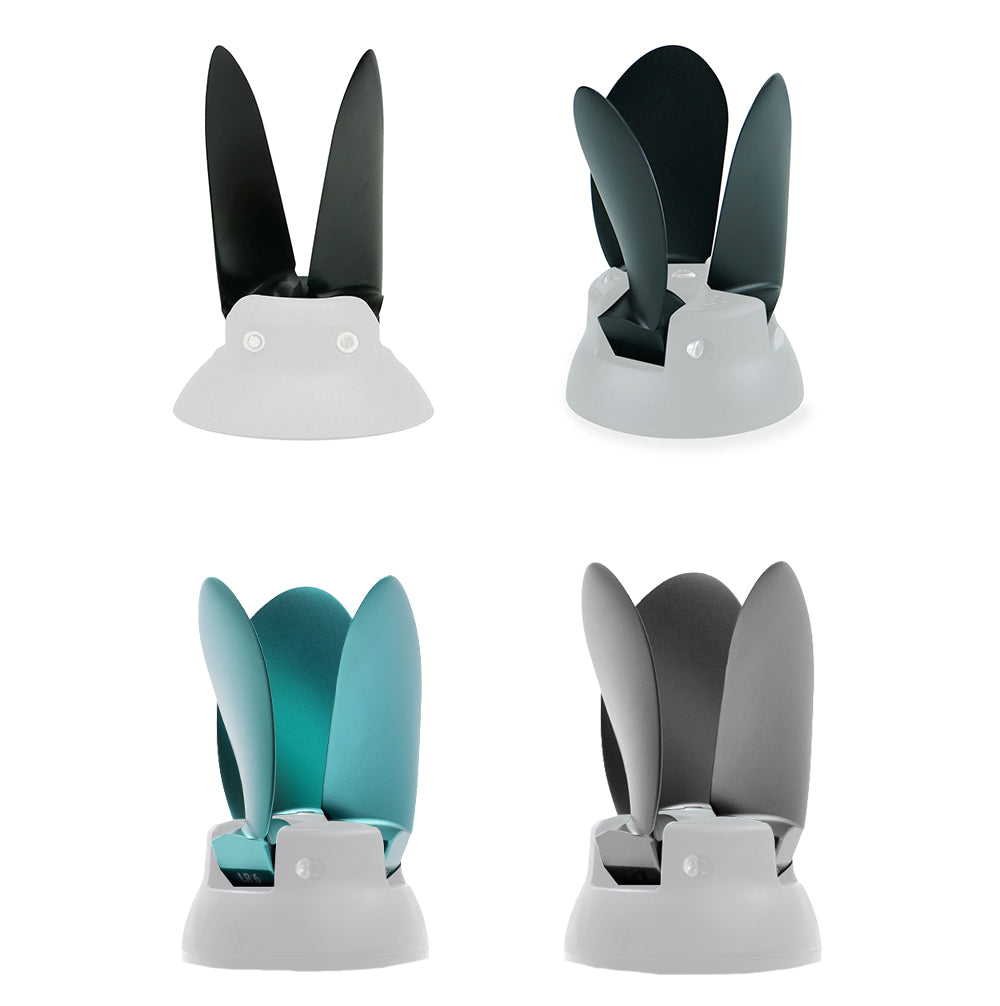

Propeller Type
2-Blade:
More top end speed, less low end torque (AKA power at take-off)
3-Blade:
Less top end speed, more low end torque (AKA more power at take-off). Especially useful for heavier riders or those using smaller boards and foils. Already have a two blade, we do offer a three blade upgrade set to convert!
Frequently Asked Questions
Do I need to buy a Foil Drive Mast for the Motor?
No! Foil Drive mounts to ALL foil masts currently in the market. As a performance upgrade, we do offer integrated masts to simplify install and improve ride feeling.
Can I upgrade my board or foil later?
Absolutely, Foil Drive is a flexible system, designed for futureproofing! You can swap and change components as your needs change and new accessories come out!
Step 4

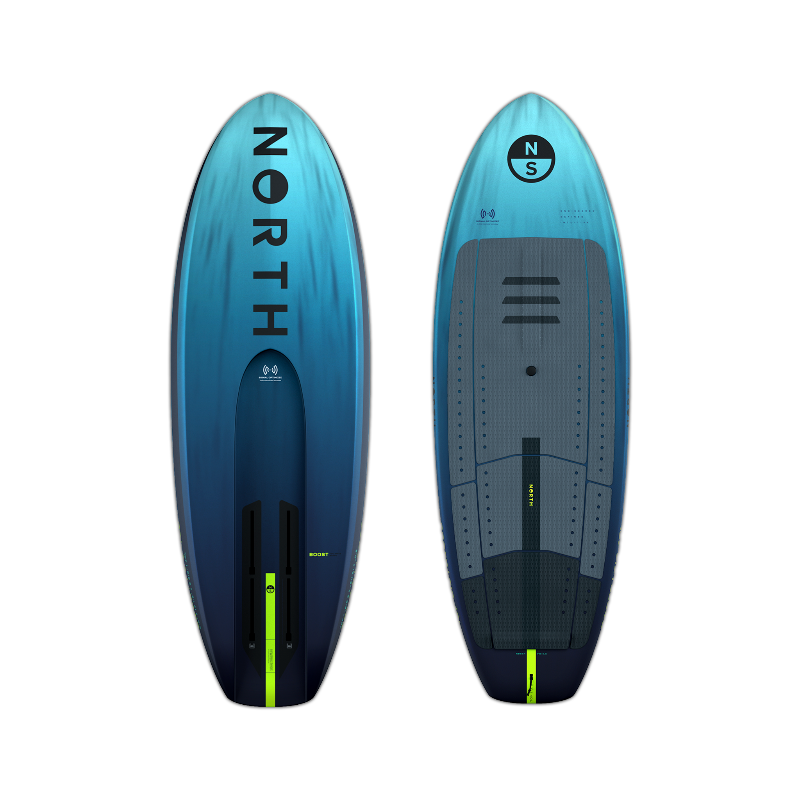

Boards and Foils
Complete your setup
Foil Drive is designed to work with almost any board and foil, so you can ride with your existing gear or build a new setup from scratch.
To complete your setup, you’ll need:
- A board
- A mast (unless using a Foil Drive integrated mast)
- Front and rear wings
- Fuselage (Depending on the brand)
Explore our partner brands below for trusted combinations that perform seamlessly with Foil Drive. Some brands provide full product guides to help you work out what you'll need!
Collaboration With Your Favourite Brands
Frequently Asked Questions
Will Foil Drive work with my existing board and foil?
Yes! Foil Drive is designed to integrate with most modern boards and foil systems, so you can often use the gear you already have.
Do I need a specific foil or board brand?
No. While we’ve partnered with trusted brands for compatibility and performance, Foil Drive will work with almost any standard setup.
What should I look for in a board or foil?
Consider your experience level and preferred conditions. A stable, buoyant board helps when starting out, while smaller foils and boards offer more manoeuvrability for experienced riders.
Can I upgrade my board or foil later?
Absolutely — Foil Drive’s flexible system means you can change boards or foils as your skills progress or your style evolves.
Options & Accessories
Optional
Popular Add-ons

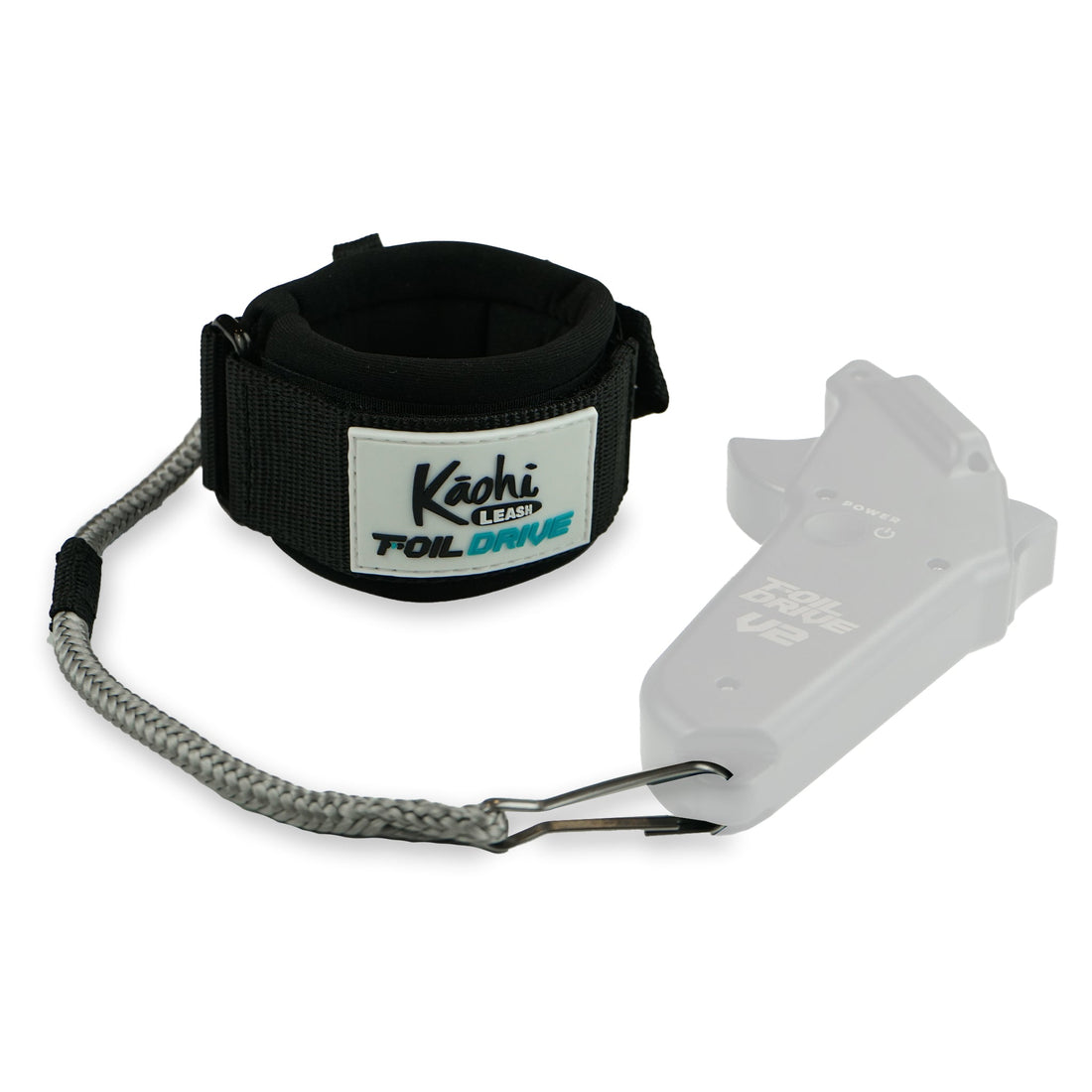

KÅohi Leash
Adjustable "Kāohi Leash X Foil Drive" Cuff secures your controller to your wrist. Improves your hands-free experience, so you can fly with extra security.

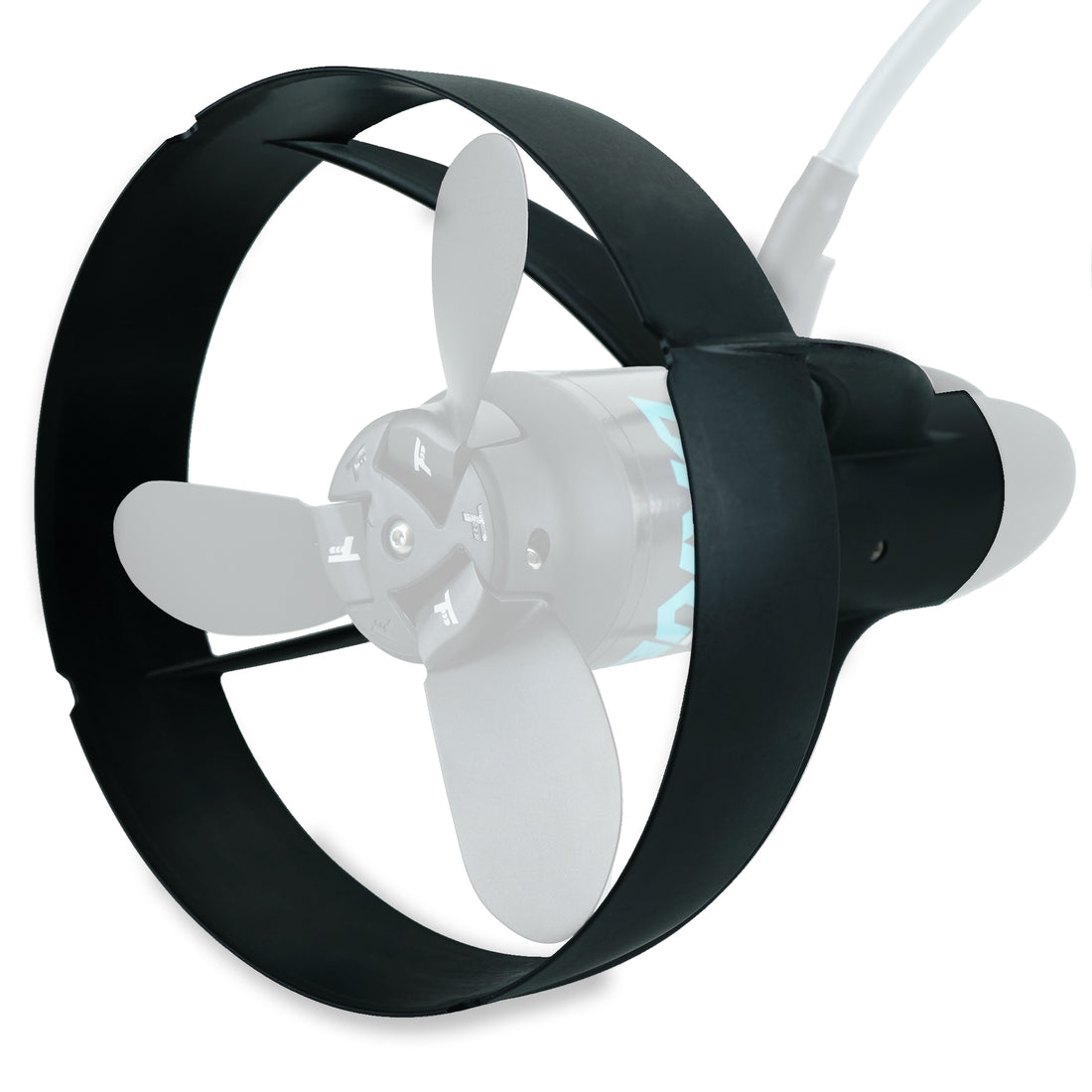

Propeller Guard
Designed for those wanting to add some bump protection, the propeller guard is most definitely not for everyone but is available for those who want added peace of mind.

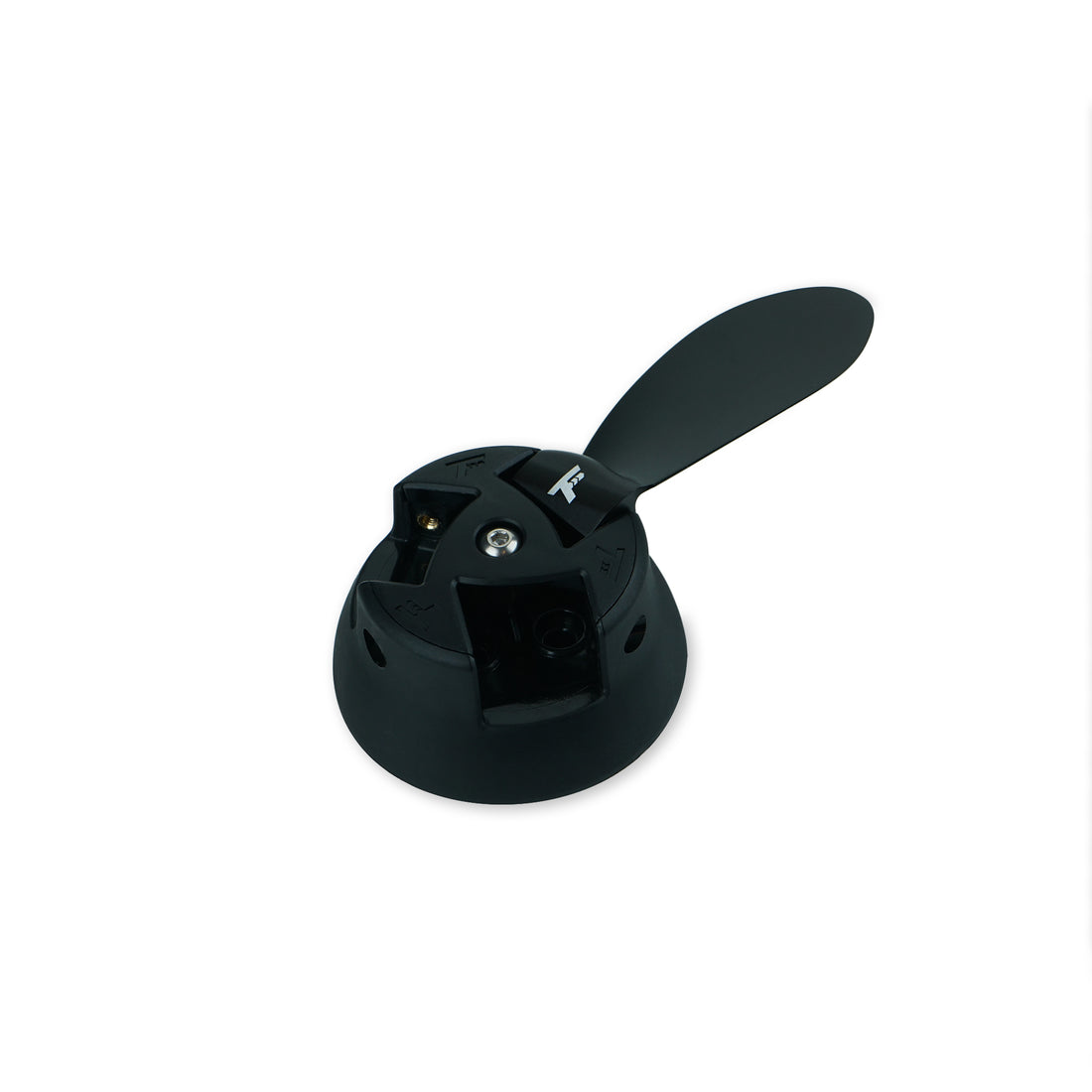

Three Blade Propeller Upgrade
Adds extra torque and lift for heavier riders or larger boards.
Frequently Asked Questions
Can I install the accessories myself?
Yes, all accessories are designed for easy installation with basic tools and simple setup steps.
Do I need a specific foil or board brand?
No. While we’ve partnered with trusted brands for compatibility and performance, Foil Drive will work with almost any standard setup.
Do the accessories affect performance?
Some add-ons, like the Propeller Guard, may slightly change the ride feel or efficiency, but they add safety and protection benefits.
Are replacement parts available?
Yes, most components can be purchased separately if needed.
