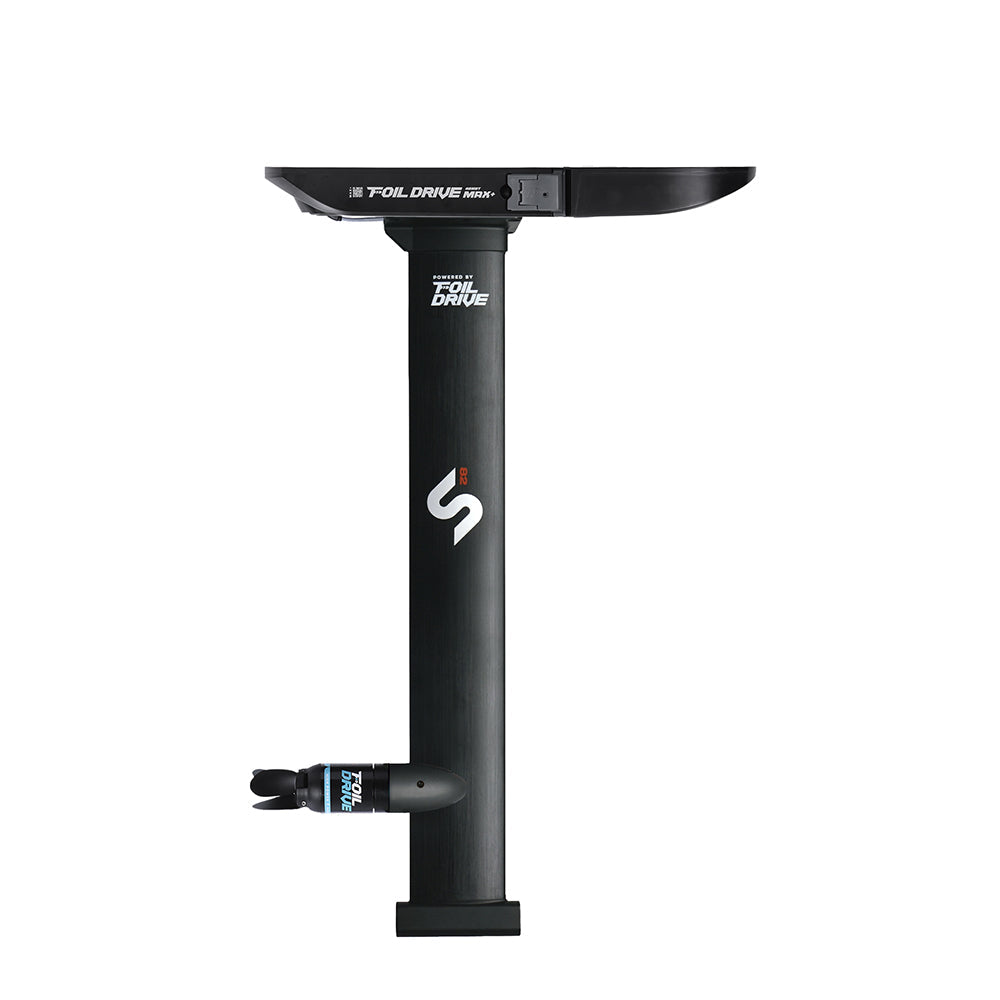

Foil Drive Assist MAX+ x Slingshot One-Lock V2 Integrated Mast Bundle

SKU:

The Foil Drive Assist MAX+ x Slingshot One-Lock V2 Integrated Mast combines the high-power, long-runtime Assist MAX+ system with the precision-engineered Slingshot Integrated Mast for the ultimate powered foiling setup. This pairing delivers smooth, efficient power while maintaining the natural balance and performance of your foil.

With the motor fully internal, the setup simplifies installation, reduces drag, and delivers more low-end torque and longer sessions on the water. The sleek, pre-installed integration ensures uninterrupted foiling, whether powered or unpowered, and keeps the lines of your mast clean and professional.

Note: Motor Position is fixed and cannot be adjusted.

This bundle includes:

Included Battery View Battery guide

FM+ 650

Choose Your Motor Height View Motor guide

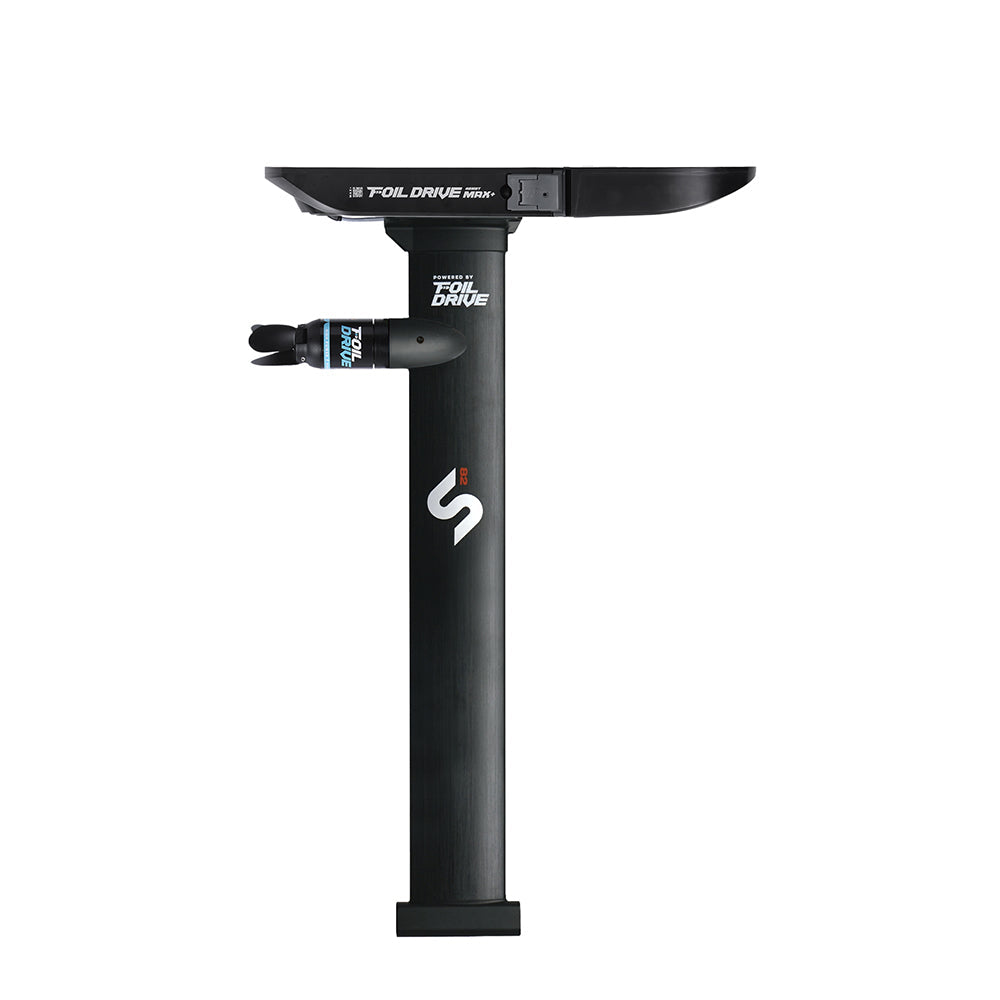

17cm / 7"

E-foil / 70cm / 27.5"

€5.977,14 EUR

(VAT Included)

Shipping calculated at checkout.

Tech Specs

icon

System Voltage: 43.2V
Battery Capacity Range: 648Wh
Max Thrust: 35.5kg
Minimum Install Weight*: 6.71 kg
Dimensions with Battery: 540x125x55mm
Peak Power (Boost): 2150W
Sustained Power: 1750W
Peak Horsepower: 2.88hp
Sustained Horsepower: 2.35hp
App Compatibility: Foil Drive App, Android and IOS
Water Rating: IP68 Water and Dust Resistance
Certified:UN38.3, CE, FCC, WEEE, RoHS, PSE, ICES, IP68

*Install weight includes Unit, Battery, Integrated HP Motor, Three Blade Hub and Props, Nosecone (If Applicable) - Retrofit install with mini pod mounted at 20cm increases install weight by 0360g

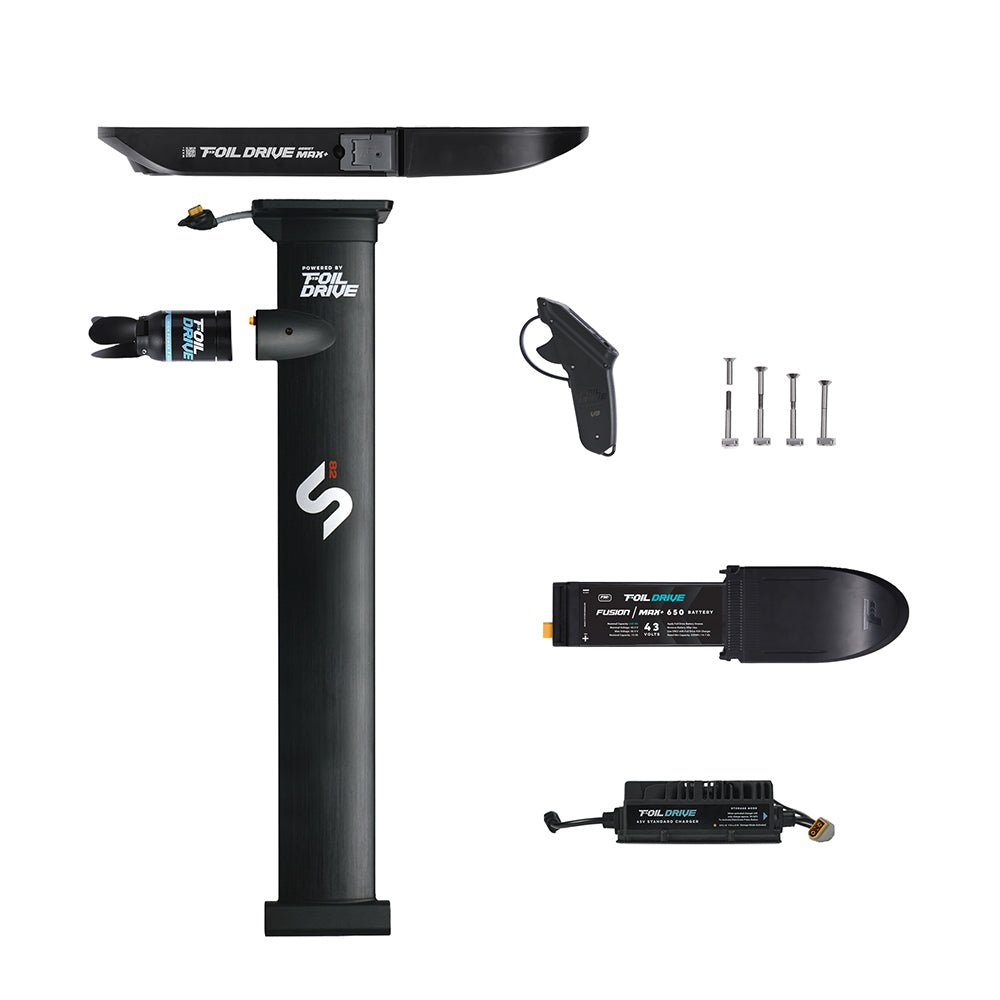

What’s Included

icon

Foil Drive MAX+ (In Case)
FM+ 650 Battery
Integrated Mast Motor
Chosen Slingshot One-Lock V2 Integrated Mast

V3 Controller with Bump Guard Installed
43V Standard Charger 12amp with selected AC Cable
2x Mast Foam Tracks Guides
1x Tool Caddy (Inside Fusion)
4x Titanium T40 M7 Split Bolts Silver
1x Sticker Pack

Controller Accessories Case
- Charge Pad and Cable
- Bump Guard Variation
- Wrist Leash
- 1.5mm Allen Key for Bump Guard Removal

Tools and Hardware
- 1x T40 Driver
- 1x T30 Driver
- 1x 2.5mm Black Titanium Driver
- 1x Pick Tool
- 2x 15g Battery Grease
- 2x Nose Cone Rocker Pads
- 3x M4 10mm Titanium Motor Plug Bolts
- 1x Anode Replacement Kit
- 1x Replacement Electronics Box O-Ring (Blue)
- 1x Replacement Motor Cable O-Ring (Blue)
- 1x Replacement Motor Cable O-Ring (Red)
- 1x Microfibre Towel

Compatible With

icon

Assist MAX+
Slingshot Foils
