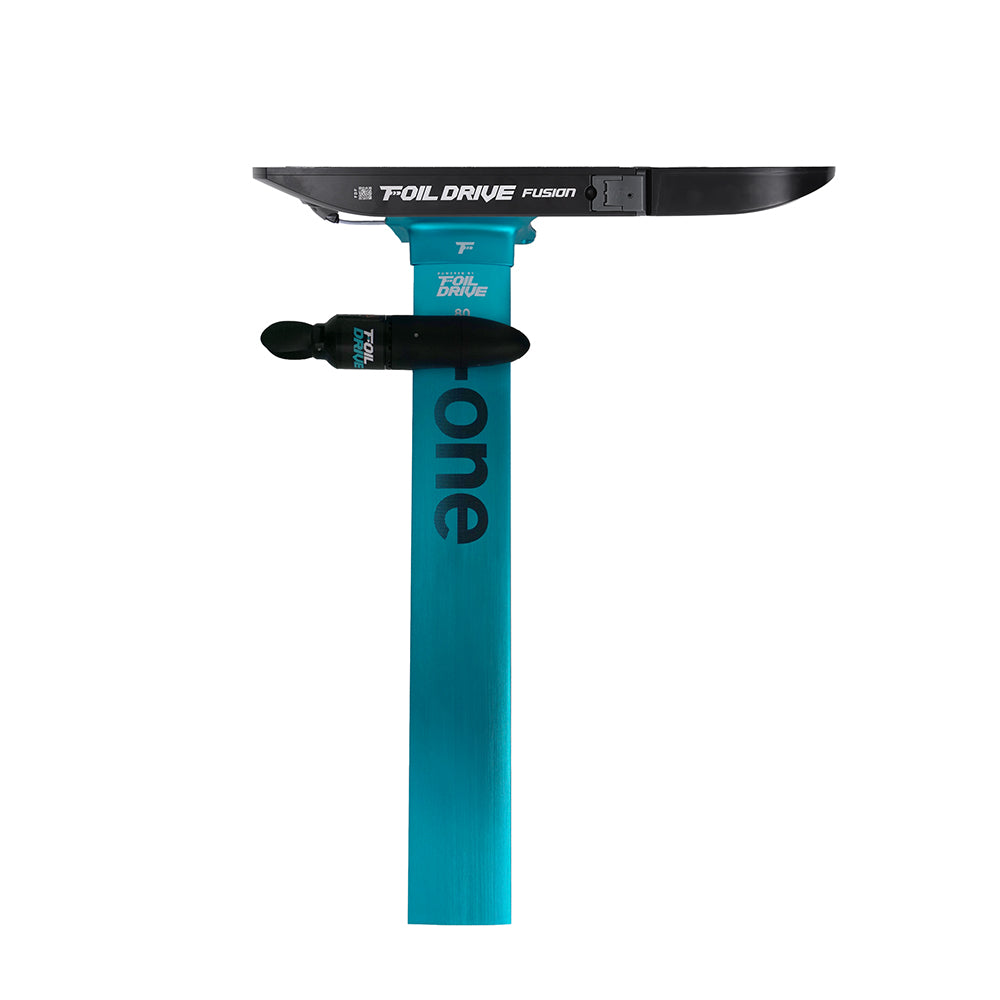

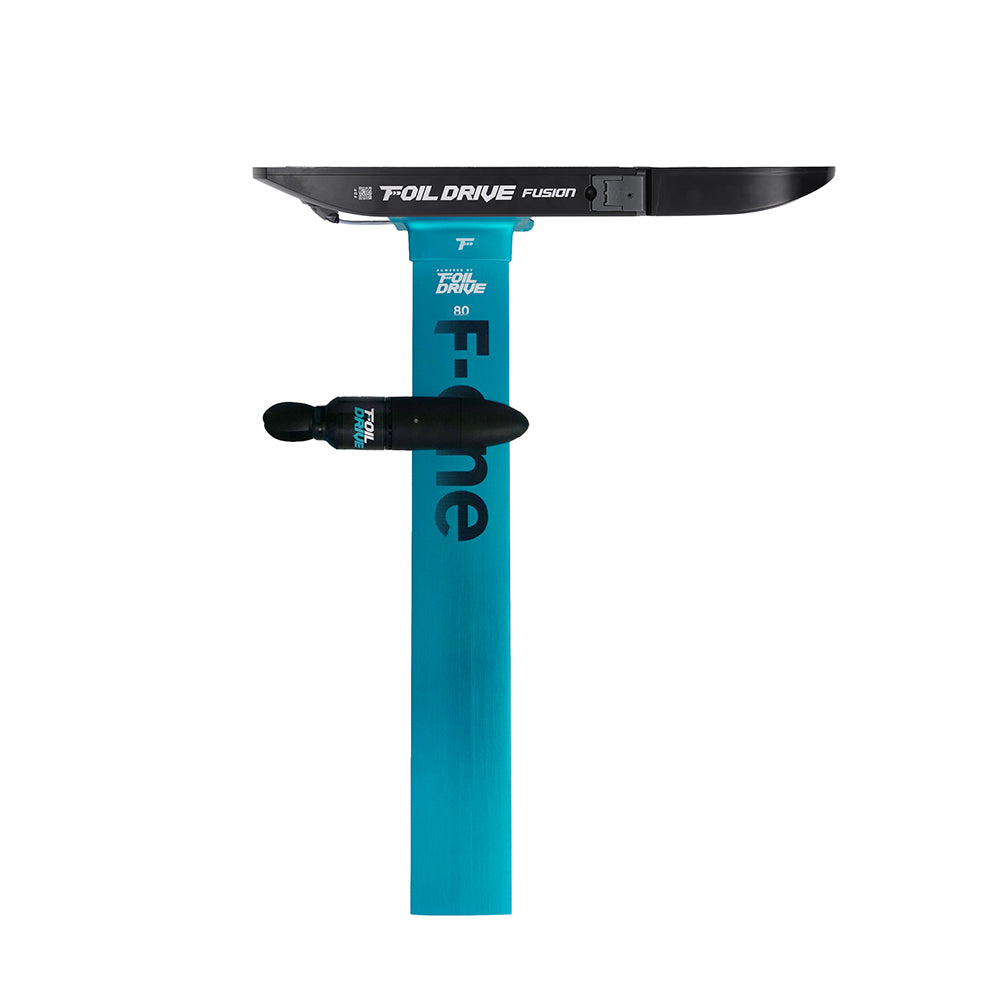

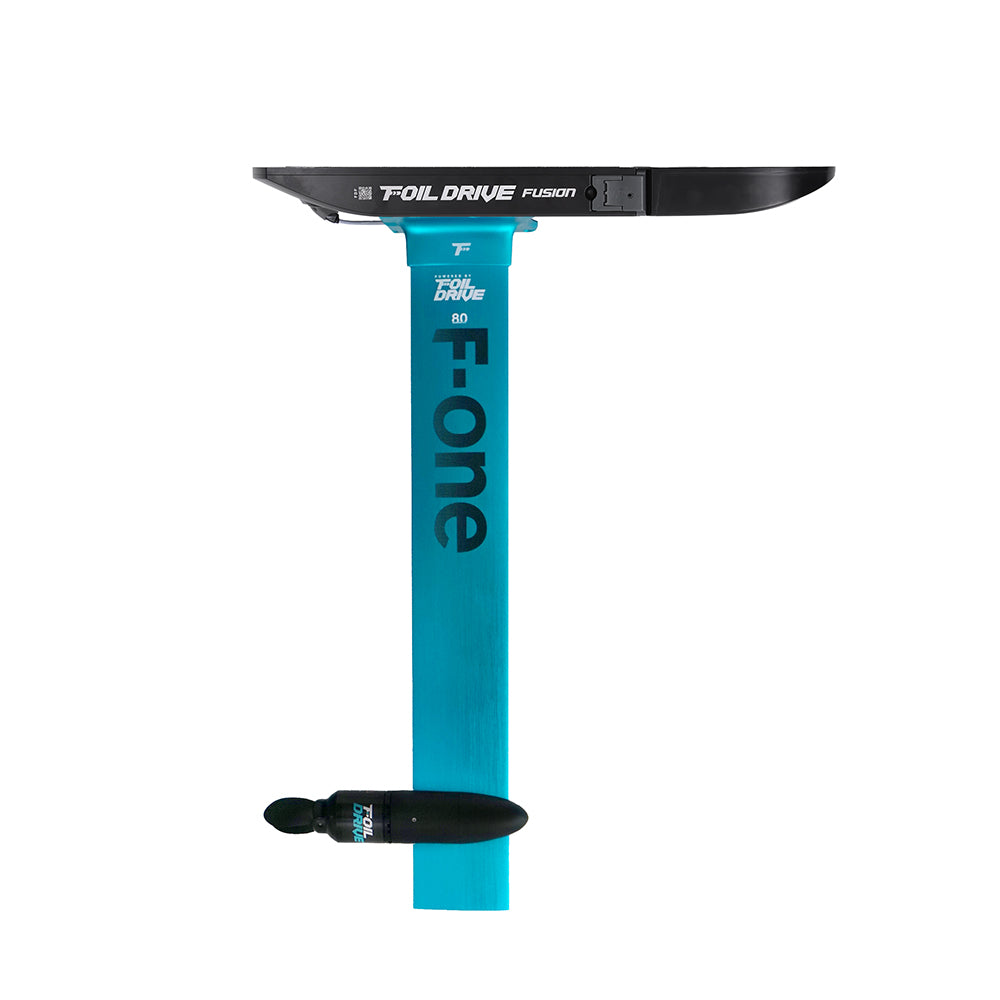

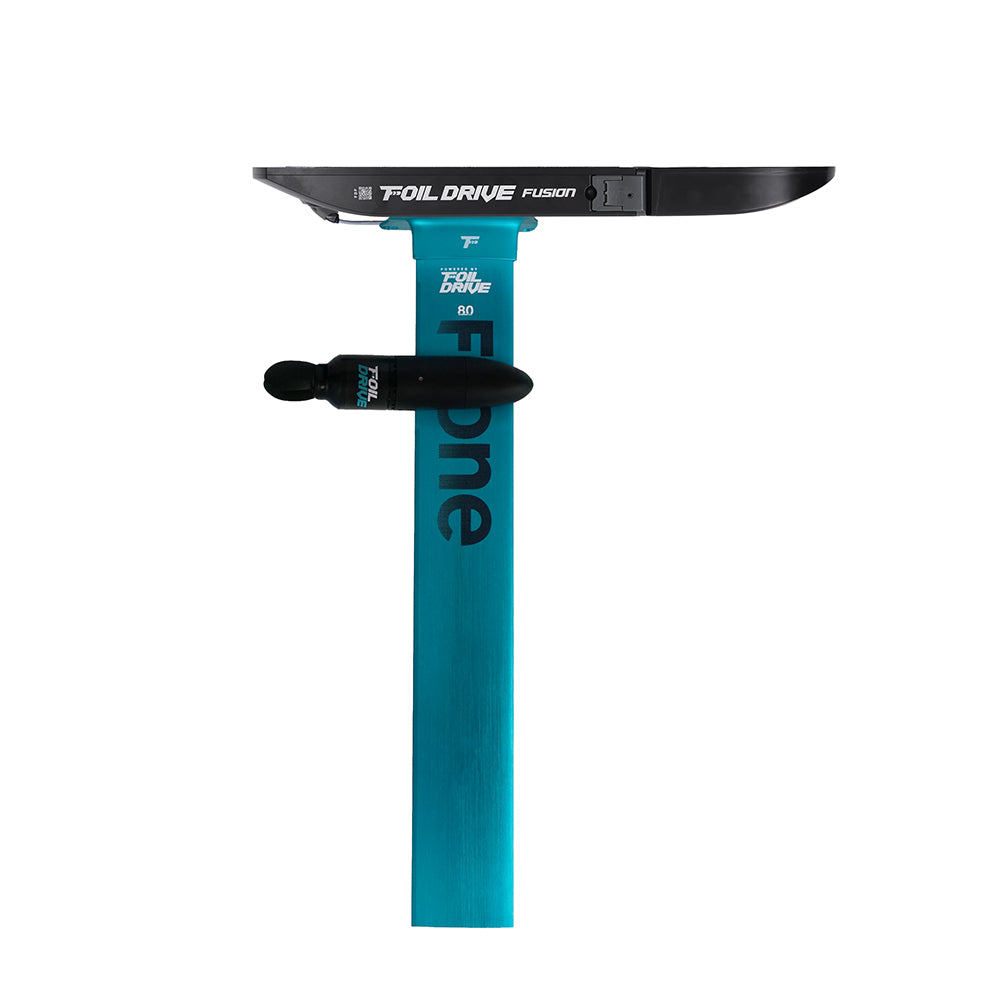

Foil Drive Fusion x F-ONE Integrated Aluminium Mast

Foil Drive Fusion x F-ONE Integrated Aluminium Mast

SKU:

The Foil Drive Fusion x FONE Integrated Mast bundle, pairs the powerful, long-runtime Fusion system with FONE mast for the ultimate hybrid setup. Enjoy the freedom to ride as an efoil alternative or switch to a high-performance Assist with ease. One system, endless pairing possibilities.

Note: Bundle does not include the titan foot
Note: Motor Position is fixed and cannot be adjusted

Fusion systems normally ship with M7 split bolts, but the F-ONE Integrated Mast requires longer M6 hardware due to its deeper mast tracks. For this reason, the correct M6 hardware (FD173-2 + FD142) is automatically included in this bundle.

This bundle includes:

Choose Your Mast Height
Regular price €7.548,90 EUR
Regular price Sale price €7.548,90 EUR

(VAT Included)

Shipping calculated at checkout.
Tech Specs
icon
  • System Nominal Voltage: 43.2V
  • Battery Capacity Range: 864Wh
  • Max Thrust: 34kg / 74.9lbs
  • Power to Weight Ratio (Thrust/Weight): 4.3 N/KG
  • Minimum Install Weight*: 7.9kg / 17.4lbs w/ Fusion 860 Battery
  • Dimensions with Battery: L658 x W125 x H54mm
  • Peak Horsepower: 2155W/2.89hp
  • Sustained Horsepower: 1750W/2.35hp
  • App Compatibility: Foil Drive App, Android and IOS
  • Water Rating: IP68 Water and Dust Resistance

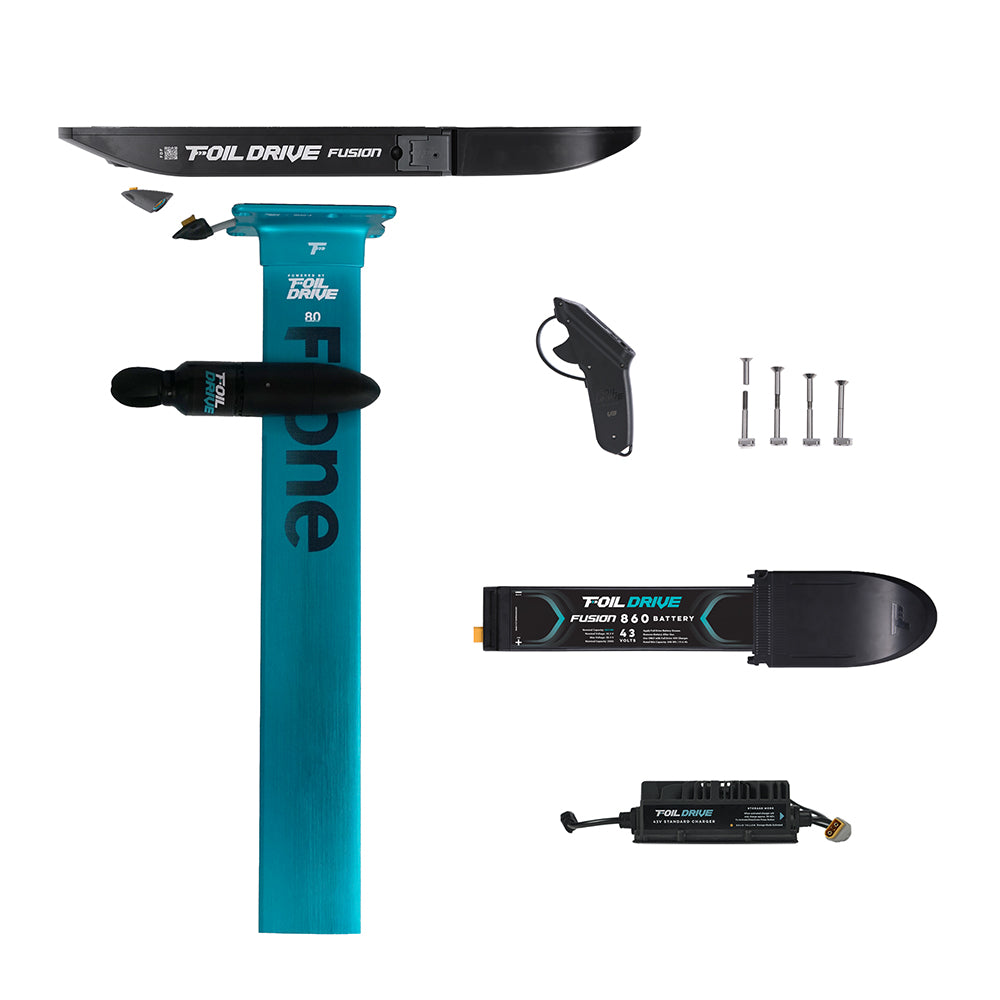

What’s Included
icon

Foil Drive Fusion Base Kit
Fusion 860 Battery
F-ONE Integrated Mast in chosen position with Integrated Mast High Power Motor
Chosen AC Lead
Correct M6 Mounting Hardware (FD173-2 + FD142) (included automatically for F-ONE compatibility)

V3 Controller with Bump Guard Installed
43V Standard Charger 12amp with selected AC Cable
1x Mast Cable Guide 23cm
2x Mast Foam Tracks Guides
1x Tool Caddy (Inside Fusion)
4x Titanium T40 M7 Split Bolts Silver
1x Medium Sticker Pack
1x EU Plug Type

Controller Accessories Case
- Charge Pad and Cable
- Bump Guard Variation
- Wrist Leash
- 1.5mm Allen Key for Bump Guard Removal

Tools and Hardware
- 1x T40 Driver
- 1x T30 Driver
- 1x 2.5mm Black Titanium Driver
- 1x Pick Tool
- 2x 15g Battery Grease
- 2x Nose Cone Rocker Pads
- 3x M4 10mm Titanium Motor Plug Bolts
- 1x Anode Replacement Kit
- 1x Replacement Electronics Box O-Ring (Blue)
- 1x Replacement Motor Cable O-Ring (Blue)
- 1x Replacement Motor Cable O-Ring (Red)
- 1x Microfibre Towel

Compatible With
icon

Fusion
F-ONE Foils

Foil Drive Fusion x F-ONE Integrated Aluminium Mast

Add to cart
Regular price €7.548,90 EUR
Regular price Sale price €7.548,90 EUR
  • 5 stars: 4 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
This product has no reviews of its own. The merchant grouped it with related products, so the reviews shown are from across that group.
D
DevonHeaven (United Kingdom)

This is my second Foil Drive system — my first was the Max. I’m an avid wing-foiler and originally bought Foil Drive to keep me on the water on light-wind days. What I didn’t expect was just how much fun I’d have surf-foiling without the wing, or how much it would improve my overall foiling ability.

Foiling hands-free, without a wing, has taken my balance, control and confidence to a whole new level. As a result, I now spend more time Foil Drive surf-foiling and downwinding than doing anything else. I absolutely love it.

I’ve since upgraded to the Fusion. While it’s slightly heavier than the Max, I barely notice that on the water. What I do notice is the extra power — which allows me to ride smaller foils and boards — and the significantly increased runtime. Being able to stay out for well over an hour without swapping batteries allows me to settle into an extended, unbroken flow state that’s rarely accessible outside a very high level of riding. I rarely fall now; instead I find myself in a kind of hypnotic, continuous loop of foil-surfing bliss.

The Fusion battery caddy is excellent, and the battery technology feels like a clear step forward compared with the Max. Overall, the system feels very well thought through and refined.

In short, I can’t recommend Foil Drive highly enough. It’s kept me on the water more than ever, made me fitter, happier, and a better surfer — and I’m over 50.

Thank you to the Foil Drive team for building a product that’s made such a meaningful difference to my day-to-day life.

A
Anonymous (France)

VERY GOOD!

S
Stefan Fuhrmann (Germany)

I hesitated because I thought the increase of weight might compromise the performance in the waves too much. Now I've been using the Fusion every day and I love it. The well distributed weight is balanced in front and in the back of the mast so it almost vanishes when riding.
The autonomy gets me to places I had not thought to be possible to reach.
I can get up in flat water on a 27l 4'2" board and 690MA Frontwing. It compensates for 2kg more weight.
Amazing new step into a new world which opens new places and gear. Thanks a lot!

B
Bernd Jenkner (Spain)

works very good. long runtime.
