Foil Drive Assist Slim

The Assist Slim is the lightest, performance-focused model designed to preserve the weightless and natural feel of foiling while still providing plenty of thrust and runtime when used efficiently.

Built for riders who prioritise responsiveness, agility, pumping, and minimal drag, the Slim excels in short, powerful bursts to get on foil before transitioning to pure glide. It offers the same peak power as the Assist MAX in a thinner, more compact system. Ideal for experienced riders who value balance, light weight, and reactive carving in surf, wake, windswell, and flatwater.

What's included

Battery System

Choose Your Battery

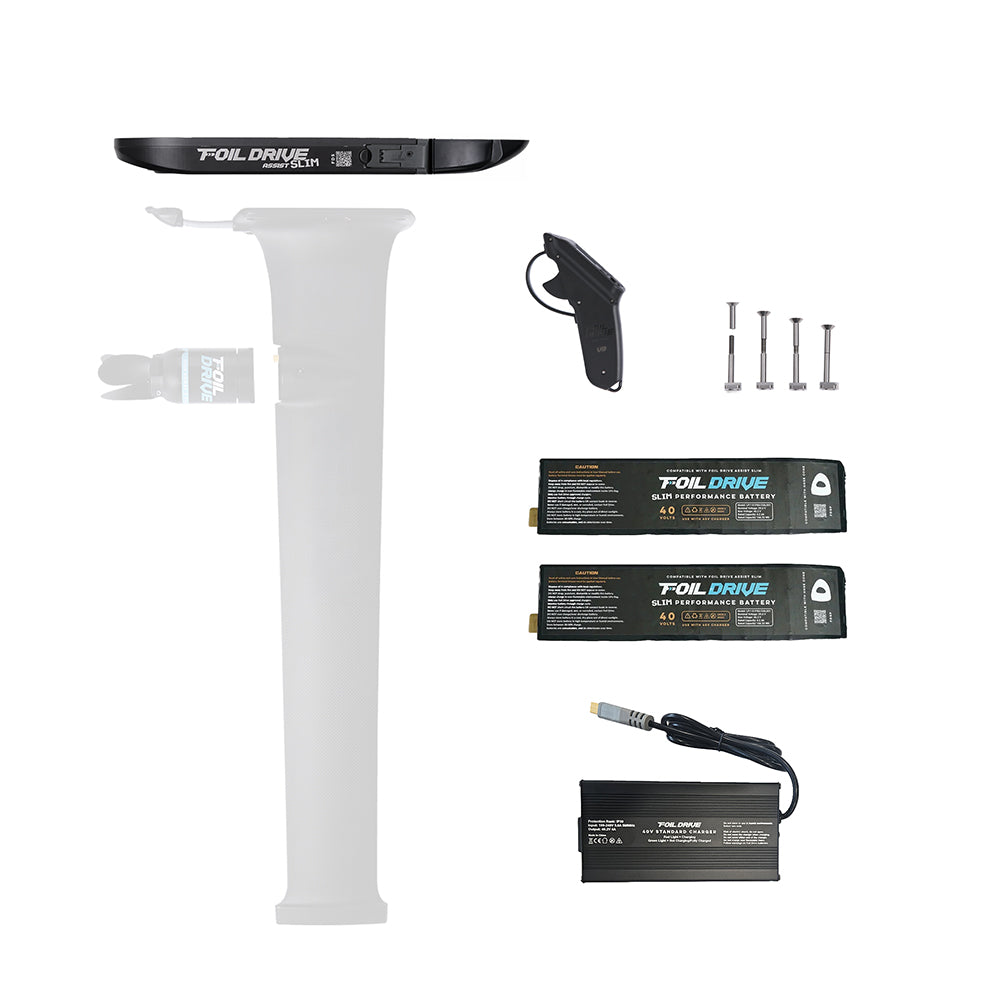

Slim Performance Battery X 2

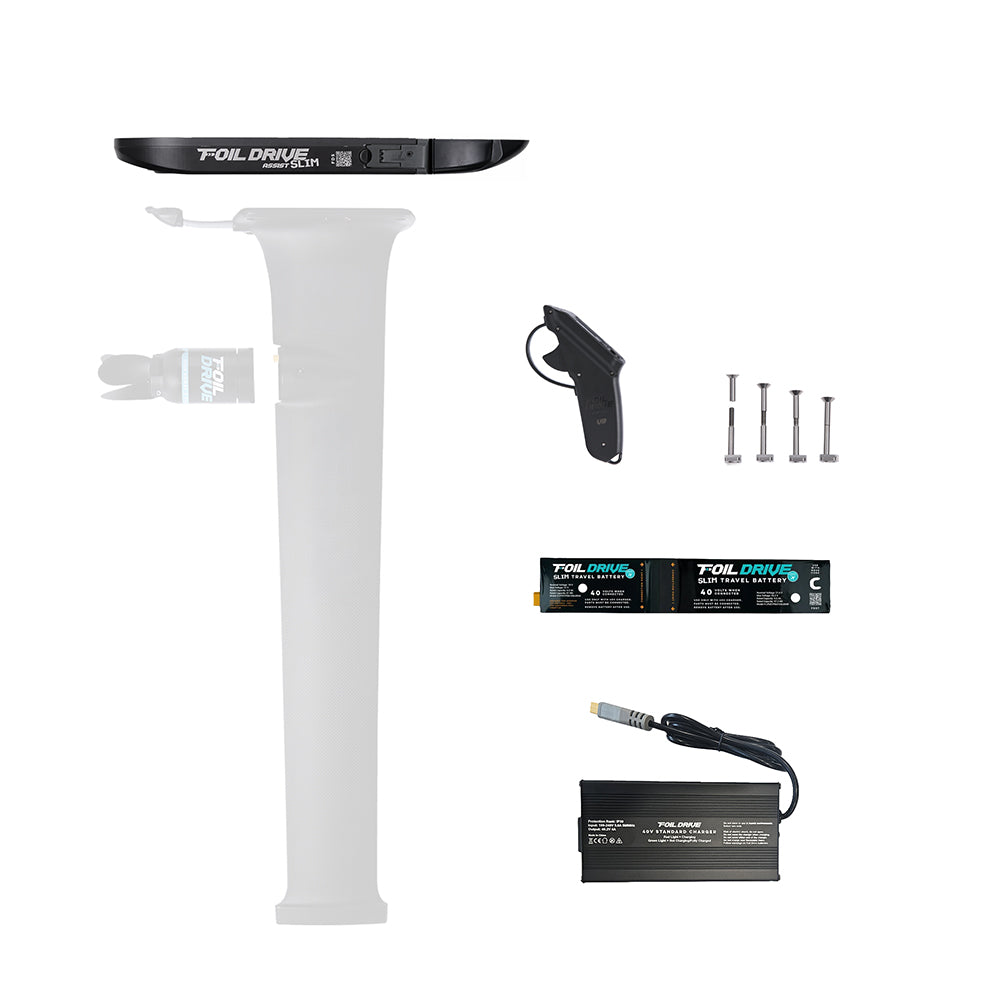

Slim Travel Battery

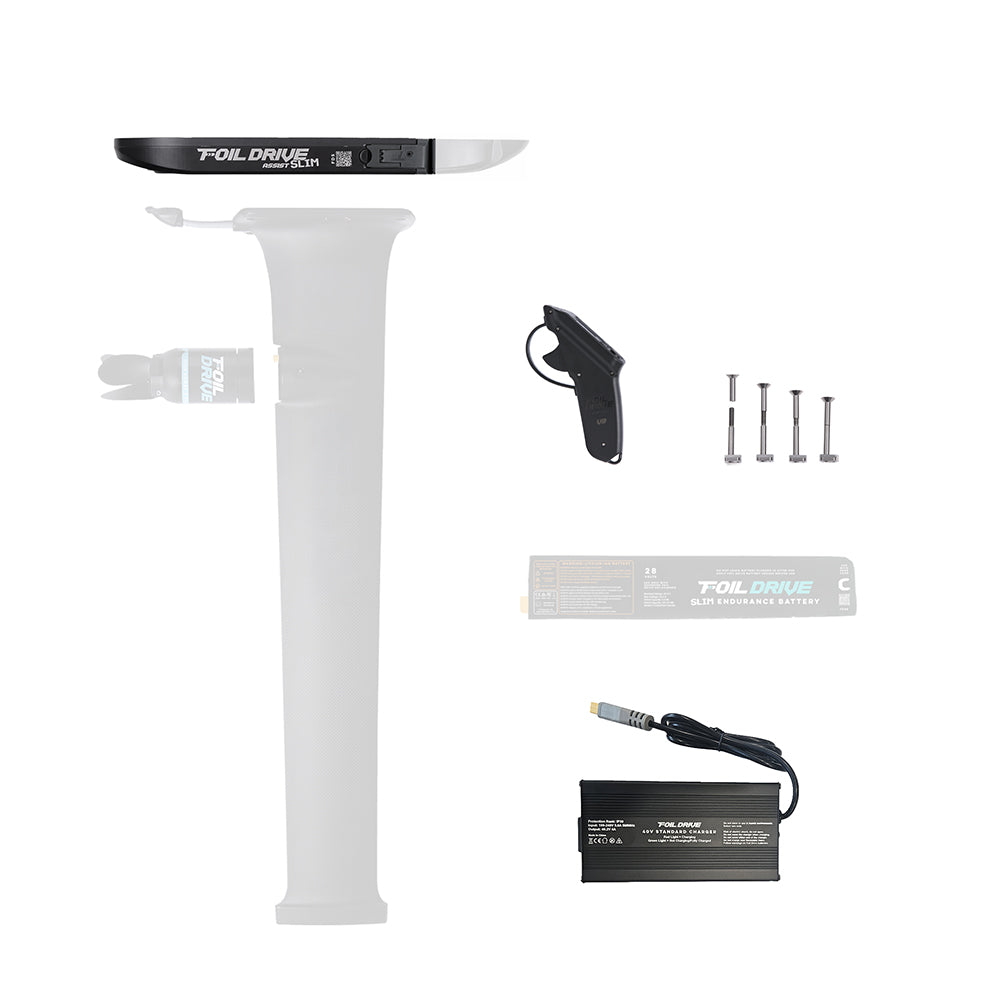

No BatterySelecting this option will not include a battery to your Assist MAX+ kit.

Motor System

Choose Your Motor

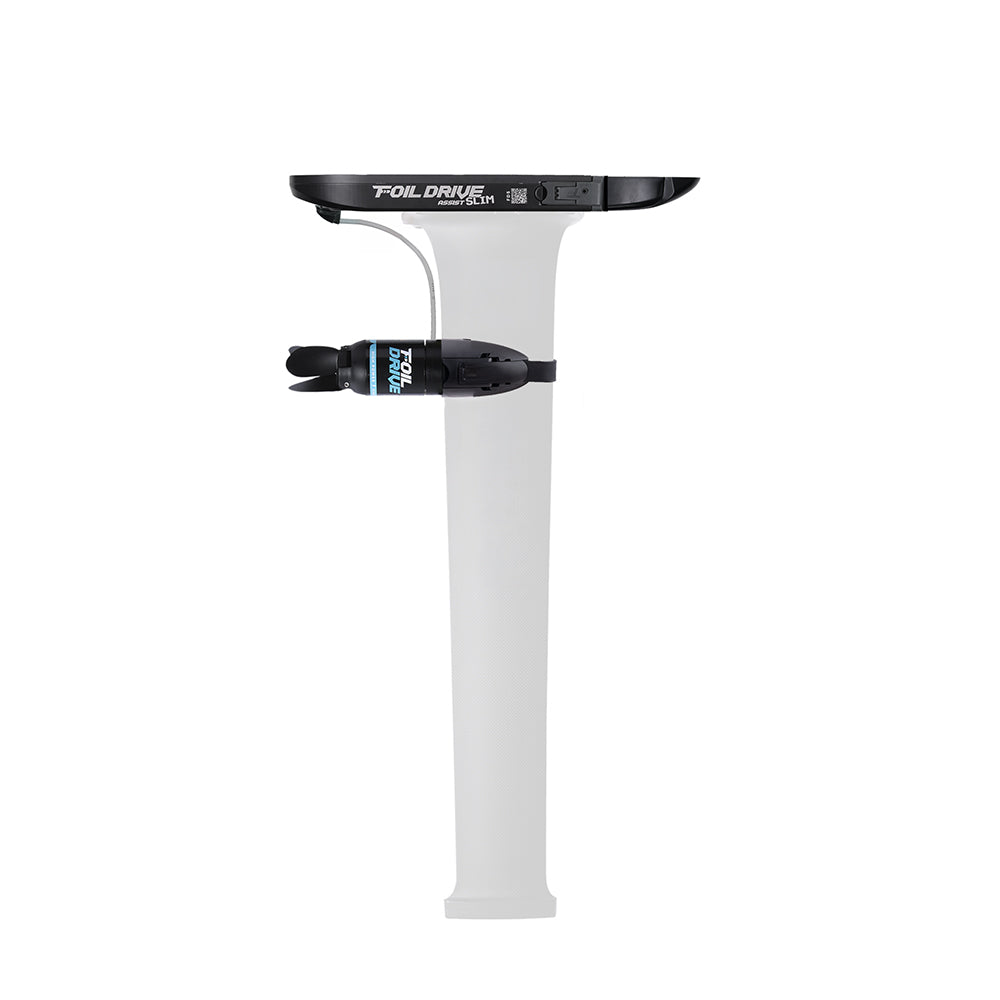

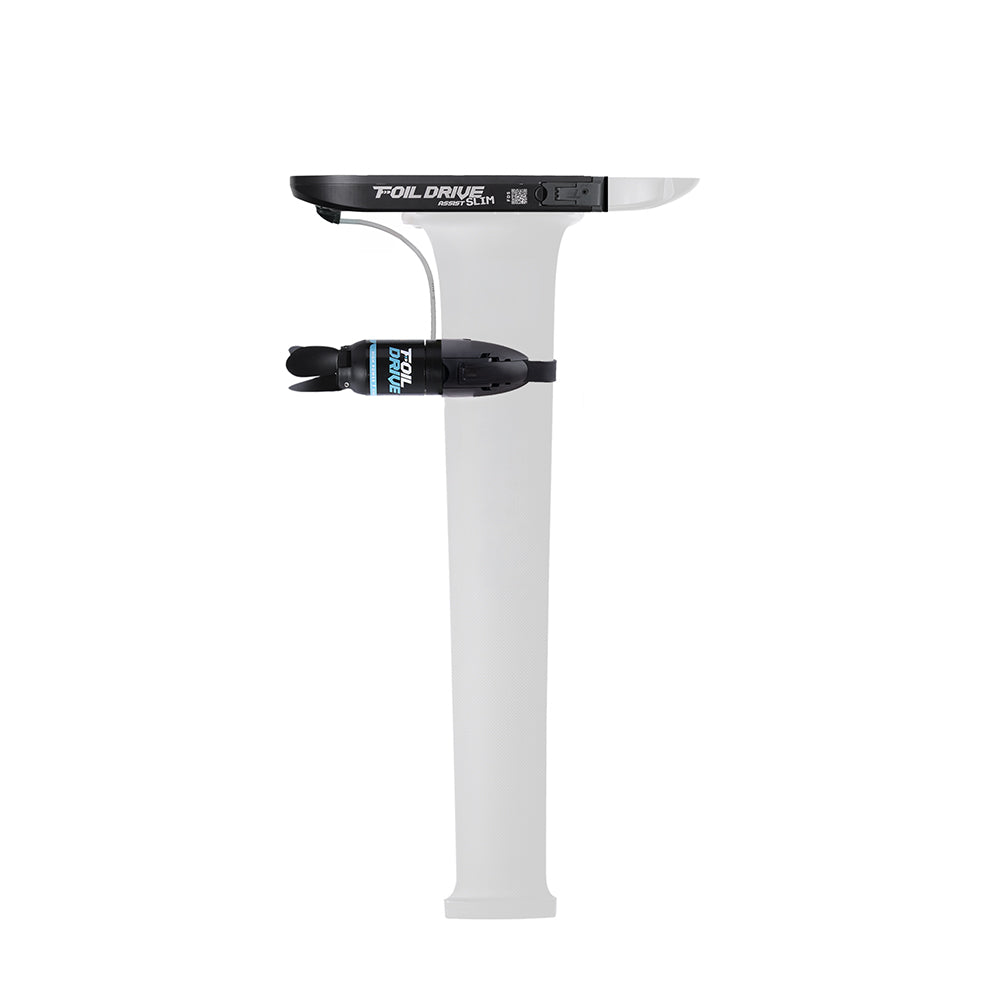

Retro-fit High Power Motor KitIncludes the Universal Mini Pod, three-blade hub, standard propellers, 20cm cable, high-power stator & rotor and hardware, delivering a complete high-performance retro-fit solution.

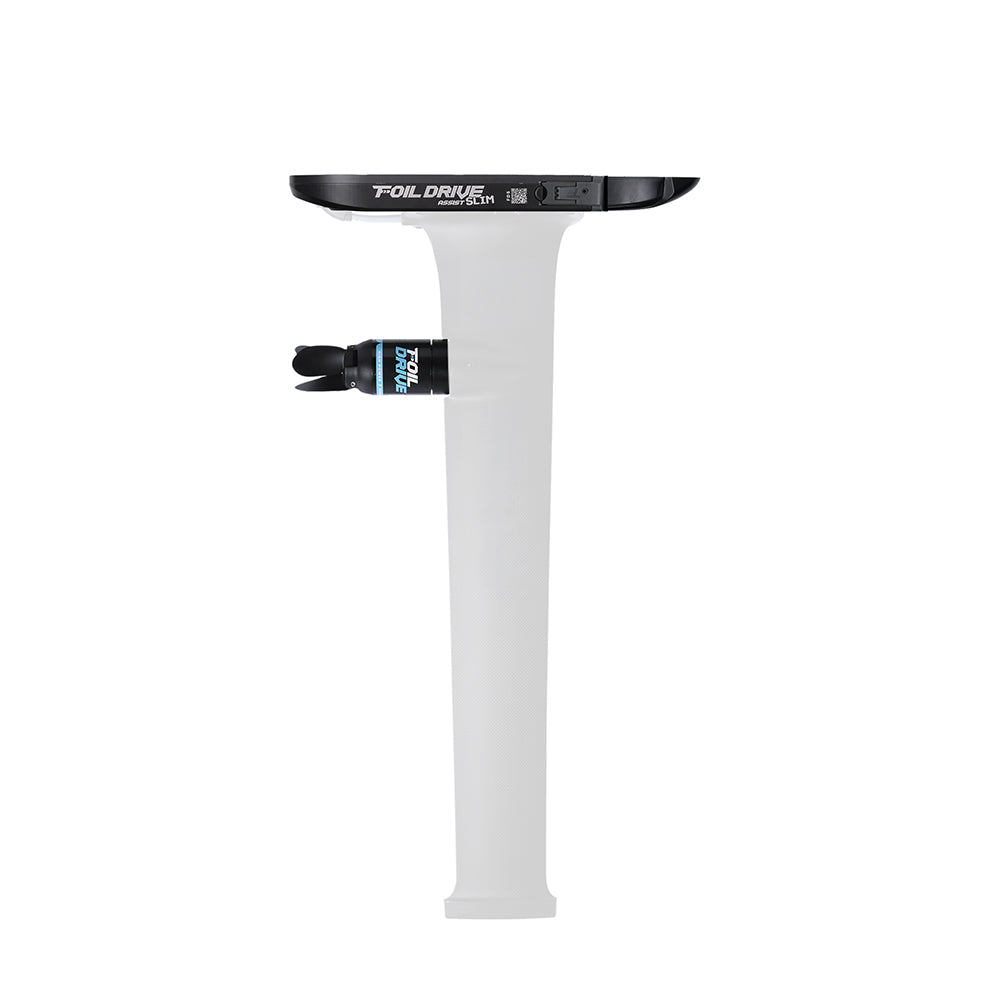

Integrated Mast High Power MotorIncludes the high-power stator & rotor, three-blade hub and standard propellers, delivering high-power performance for alloy or carbon Foil Drive integrated masts.

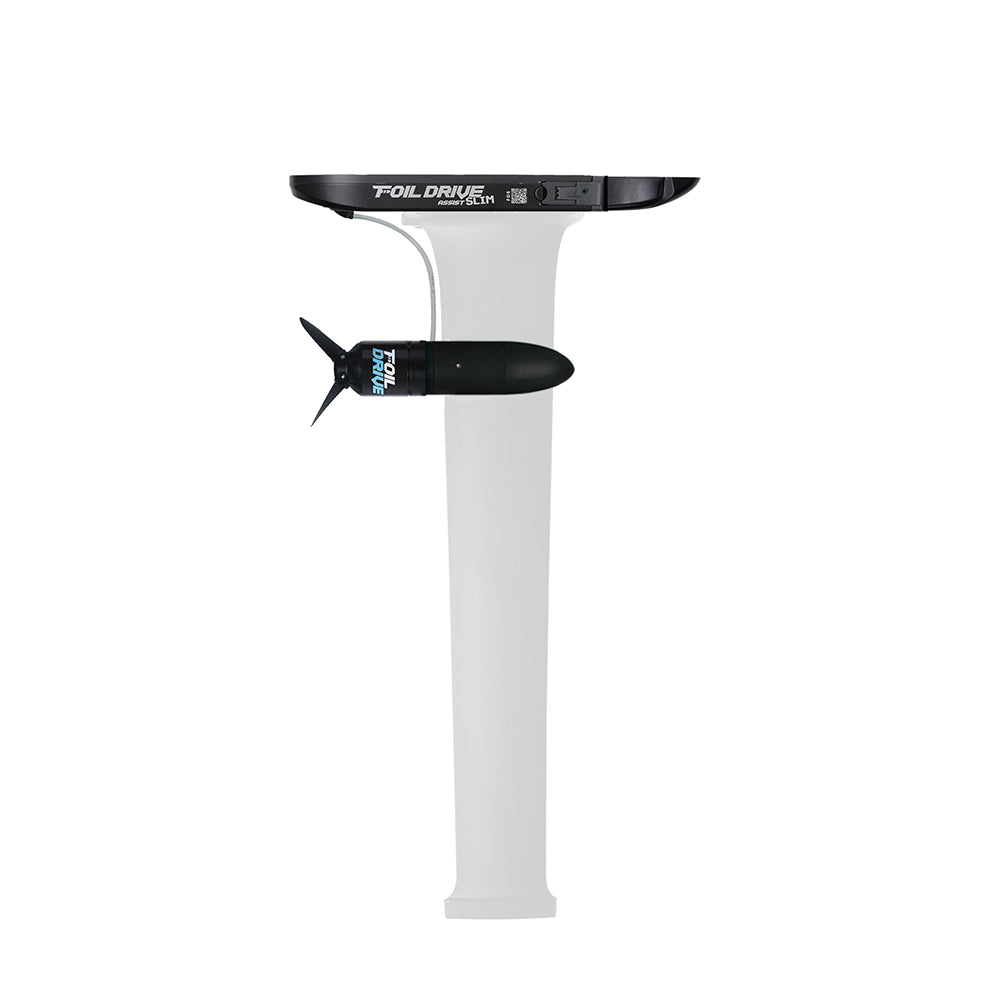

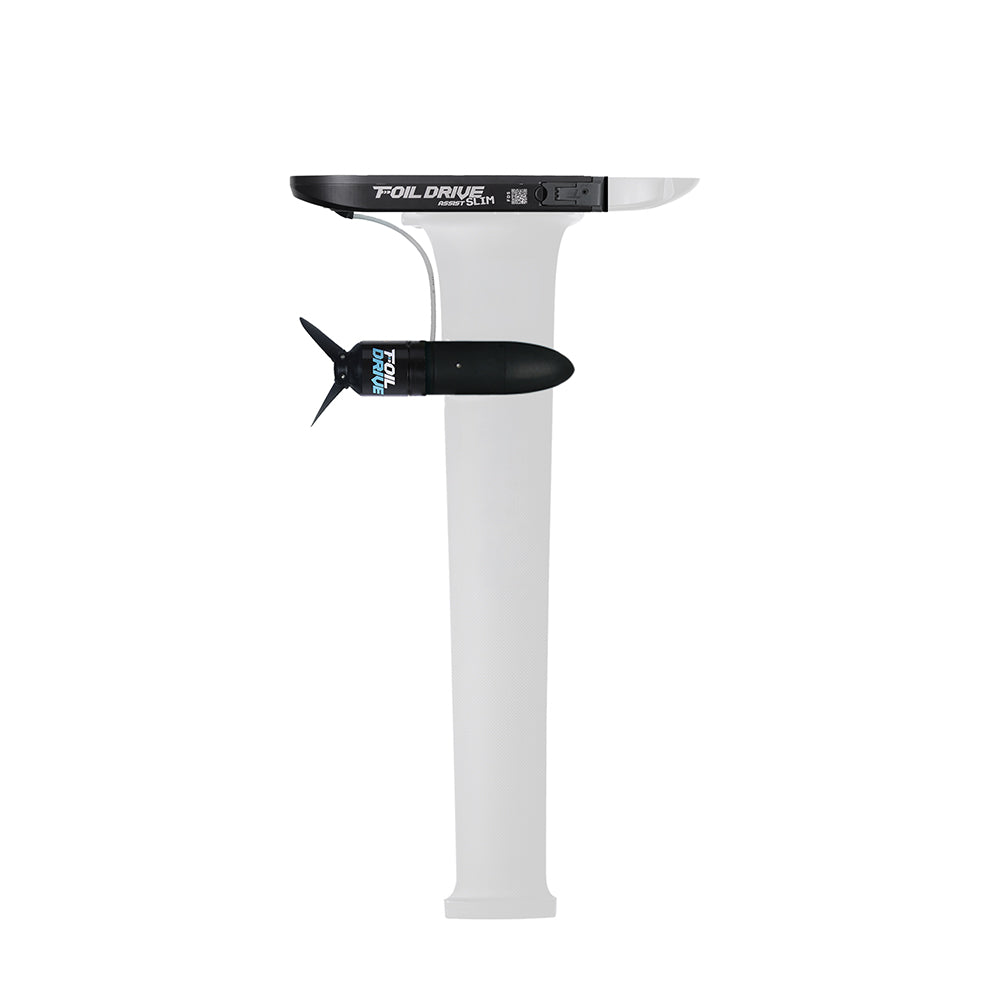

Retro-fit Standard Motor KitIncludes the Universal Motor Pod, two-blade hub, standard propellers, 30cm cable, standard stator & rotor and hardware, offering a great entry point for retro-fit setups.

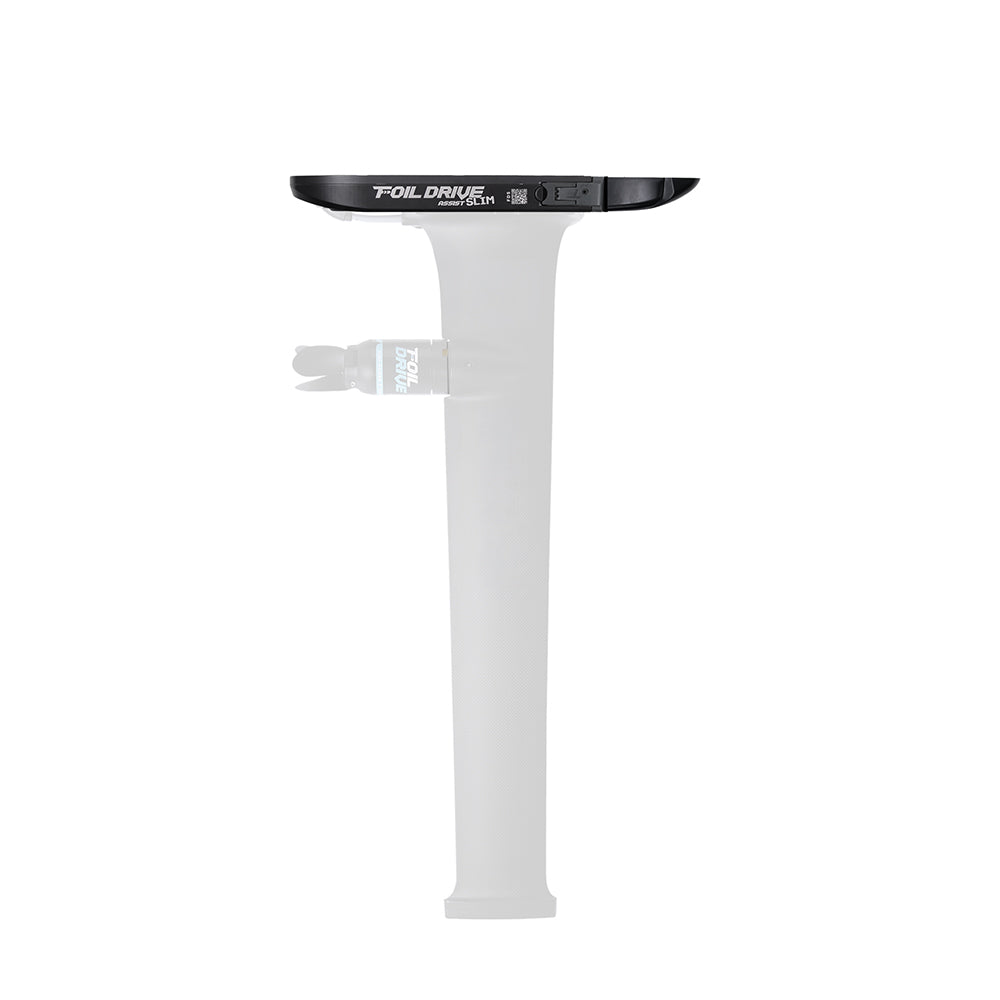

No MotorSelecting this option will not include a motor system to your Assist Slim kit.

€2.976,00 EUR

(VAT Included)

Shipping calculated at checkout.

Tech Specs

icon

System Nominal Voltage: 40V
Battery Capacity Range: 166-241Wh
Max Thrust: 26.5kg / 58.4lbs
Top Power to Weight Ratio (Thrust/Weight): 7 N/KG
Minimum Install Weight*: 3.75kg / 8.26lbs with Slim Performance
Dimensions with Battery: L510x W125 x H35mm
Peak Horsepower: 1854W/2.5hp
Sustained Horsepower: 1455W/1.9hp
App Compatibility: Foil Drive App, Android and IOS
Water Rating: IP68 Water and Dust Resistance

What’s Included

icon

Choice of Battery
Choice of Motor Kit
___

Foil Drive Assist Slim
Motor Plug Protector with Keychain
40v Standard Foil Drive Charger 4amp
Nose Cone C
Nose Cone D
Universal Motor Pod - Rear
Universal Motor Pod - Short Nose
Universal Motor Pod - Long Nose
Universal Motor Pod Keys

V3 Wireless Throttle Controller
Controller Wireless Charge Pad and Micro USB Cable
Controller Wrist Strap

1x Mast Cable Guide 23cm each
2x Mast Track Foam Inserts
2x Nose Cone Rocker Pad
2x Battery Grease

Foil Drive Mounting Bolt Bag
- 4x M8 Locking Tee Nuts
- 4x M6 Locking Tee Nuts
- 4x M3 x 20mm Bolts for Locking Tee Nuts

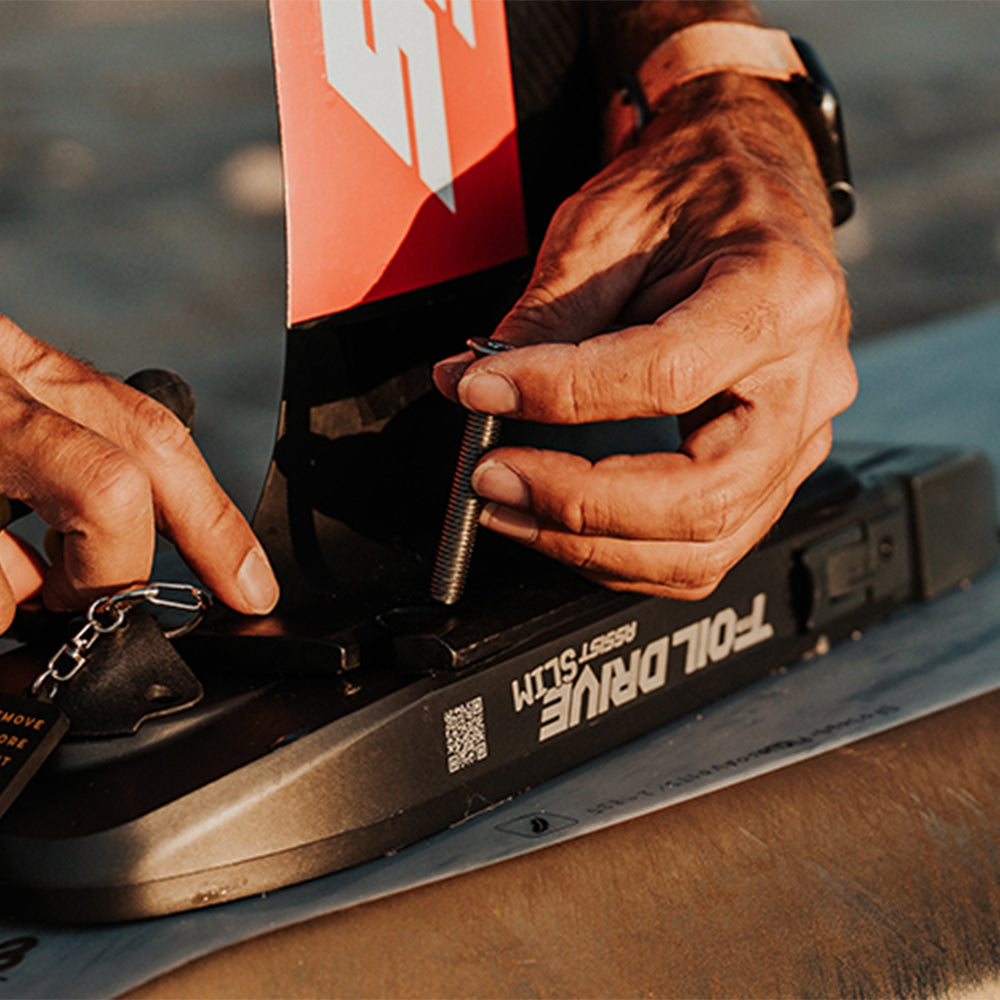

4x M8 Assist Slim Mast Plate Bolts 60mm
4x M6 Assist Slim Mast Plate Bolts 60mm

Foil Drive 2.5mm Driver
Pick Tool
Torx T40 Tee Handle Driver
Torx T30 Tee Handle Driver
Foil Drive Cleaning Cloth
Foil Drive Gen2 Carry Case

Foil Drive Motor and Pod Bolts Bag
- 4x Motor Pod Bolts (M3 x 12mm)
- 3x Puck Bolts (M3 x 12mm)
- 3x Motor Plug Bolts (M4 x 10mm)

Spare Parts Bag
- 2x O-Ring Seals - Foil Drive Assist MAX
- 2x Latch Assembly - Foil Drive Assist MAX
- 3x Motor Plug Bolts (M4 x 10mm)
- 7x Motor Pod Bolts/Puck Bolts (M3 x 12mm)
- 4x Latch Locking Bolts (M3 x 16mm)
- 2x Propeller Bolts (M3 x 30mm)
- 2x Latch Pivot Bolts (M3 x 45mm)

Compatible With

icon

Assist Slim
Slim Performance Battery x2
Slim Endurance Battery
Slim Travel Battery
Project Cedrus integrated Mast for Gen2
AXIS Integrated Mast for Gen2
