Foil Drive Assist MAX+ (Base Kit)

Foil Drive Assist MAX+ (Base Kit)

SKU: FD400

The Foil Drive Assist MAX+ is the next generation of our most versatile foil assist system. Built on the proven Gen2.5 platform, it delivers more power, improved efficiency and smarter technology while maintaining the balanced ride that made the original Assist MAX the go-to choice for riders across every discipline.

Note: This is a Base Kit ONLY,  no motor or battery included:
See here for full bundle listings
Build out your base kit here

Designed for riders who won't specialise, the Assist MAX+ provides the perfect balance of power, weight and runtime. Whether you're surfing, wing foiling, downwinding, wake foiling or exploring flatwater, it adapts to the way you ride without the need for discipline-specific setups.

Why a Base Kit?

1. Purchasing an Integrated Mast - The base kit does not include a motor allowing you to not double up when you buy your mast!

2. You're upgrading or adding to your fleet - If you already own MAX batteries and motors, but simply want to add another system to get another board set up, this is a great option!

3. Full Customization - The base kit provides a great base to build out your kit yourself

Regular price €3.323,14 EUR
Regular price Sale price €3.323,14 EUR

(VAT Included)

Shipping calculated at checkout.
Details
icon

Powered by our new 43V architecture, the Assist MAX+ features increased power, enhanced Bluetooth connectivity, an integrated tilt sensor and compatibility with the new FM+ battery platform. Launching with the 650Wh FM+ battery, it delivers longer runtime and improved efficiency, while additional battery options will provide even greater flexibility in the future.

The balance hasn't changed, it has evolved. The Assist MAX+ is everything riders loved about the original Assist MAX, upgraded with our latest technology for more capable, more efficient and more versatile performance on the water.

Tech Specs
icon
  • System Voltage: 43.2V
  • Battery Capacity Range: 648Wh
  • Max Thrust: 35.5kg
  • Minimum Install Weight*: 6.71 kg
  • Dimensions with Battery: 540x125x55mm
  • Peak Power (Boost): 2150W
  • Sustained Power: 1750W
  • Peak Horsepower: 2.88hp
  • Sustained Horsepower: 2.35hp
  • App Compatibility: Foil Drive App, Android and IOS
  • Water Rating: IP68 Water and Dust Resistance
  • Certified:UN38.3, CE, FCC, WEEE, RoHS, PSE, ICES, IP68

*Install weight includes Unit, Battery, Integrated HP Motor, Three Blade Hub and Props, Nosecone (If Applicable) - Retrofit install with mini pod mounted at 20cm increases install weight by 0360g

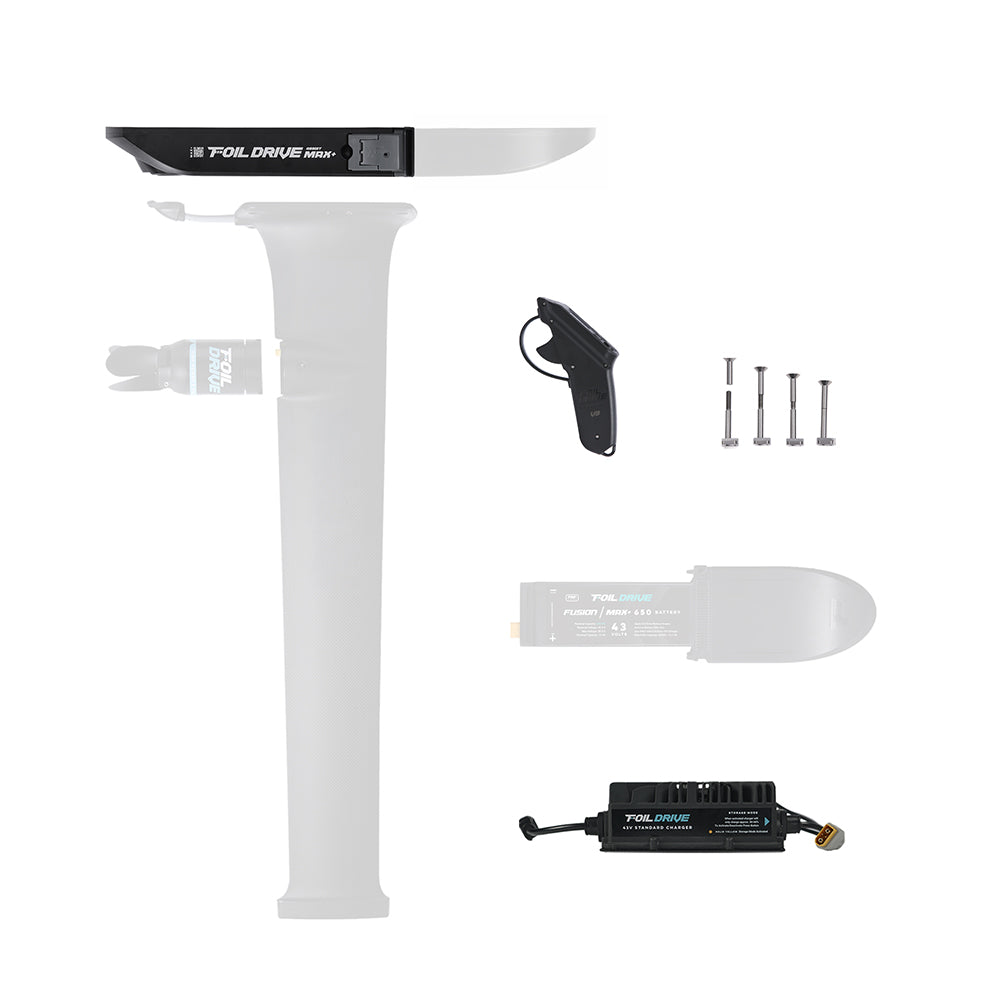

What’s Included
icon

NO MOTOR

NO BATTERY (CADDY OR BATTERY CASE)

___

Foil Drive MAX+ (In Case)
V3 Controller with Bump Guard Installed
43V Standard Charger 12amp
4x Titanium T40 M7 Split Bolts Silver

Controller Accessories Case
- USB-C Charge Pad and Cable
- Bump Guard Variation
- Wrist Leash
- 1.5mm Allen Key for Bump Guard Removal

Tools and Hardware
1x T40 Driver
1x T30 Driver
1x 2.5mm Black Titanium Driver
1x Pick Tool
2x 15g Battery Grease
2x Nose Cone Rocker Pads
3x M4 10mm Titanium Motor Plug Bolts
1x Anode Replacement Kit
1x Replacement Electronics Box O-Ring (Blue)
1x Replacement Motor Cable O-Ring (Blue)
1x Replacement Motor Cable O-Ring (Red)
1x Microfibre Towel

Other
2x Mast Foam Tracks Guides
1x Tool Caddy (Inside MAX+)
1x Sticker Pack

User Manuals

Foil Drive Assist MAX+ (Base Kit)

Add to cart
Regular price €3.323,14 EUR
Regular price Sale price €3.323,14 EUR
  • 5 stars: 5 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
This product has no reviews of its own. The merchant grouped it with related products, so the reviews shown are from across that group.
G
Gerry Lopez (United States)

Like everything Foil Drive does, the new Assist Max+ is another step up!

F
Foil Surf UK Matt Barker-Smith (United Kingdom)

More power ...feels smoother . the trust factor just went up another level

G
Greg Rowan (United States)

Definitely worth the upgrade!

M
Michael (Australia)

Loving the extra power and runtime, sooooo good.

L
Ludovic Calarnou (France)

It is a real improvement compared to the standard high-power battery. Before buying, I was not sure because of the extra weight of the Max+, but you don't feel it and it feels more balanced on the water. The extra battery life is definitely there. Storage and charging are straightforward with the 43V charger. It's a costly investment, but it really changes the experience and the feeling on the water.
