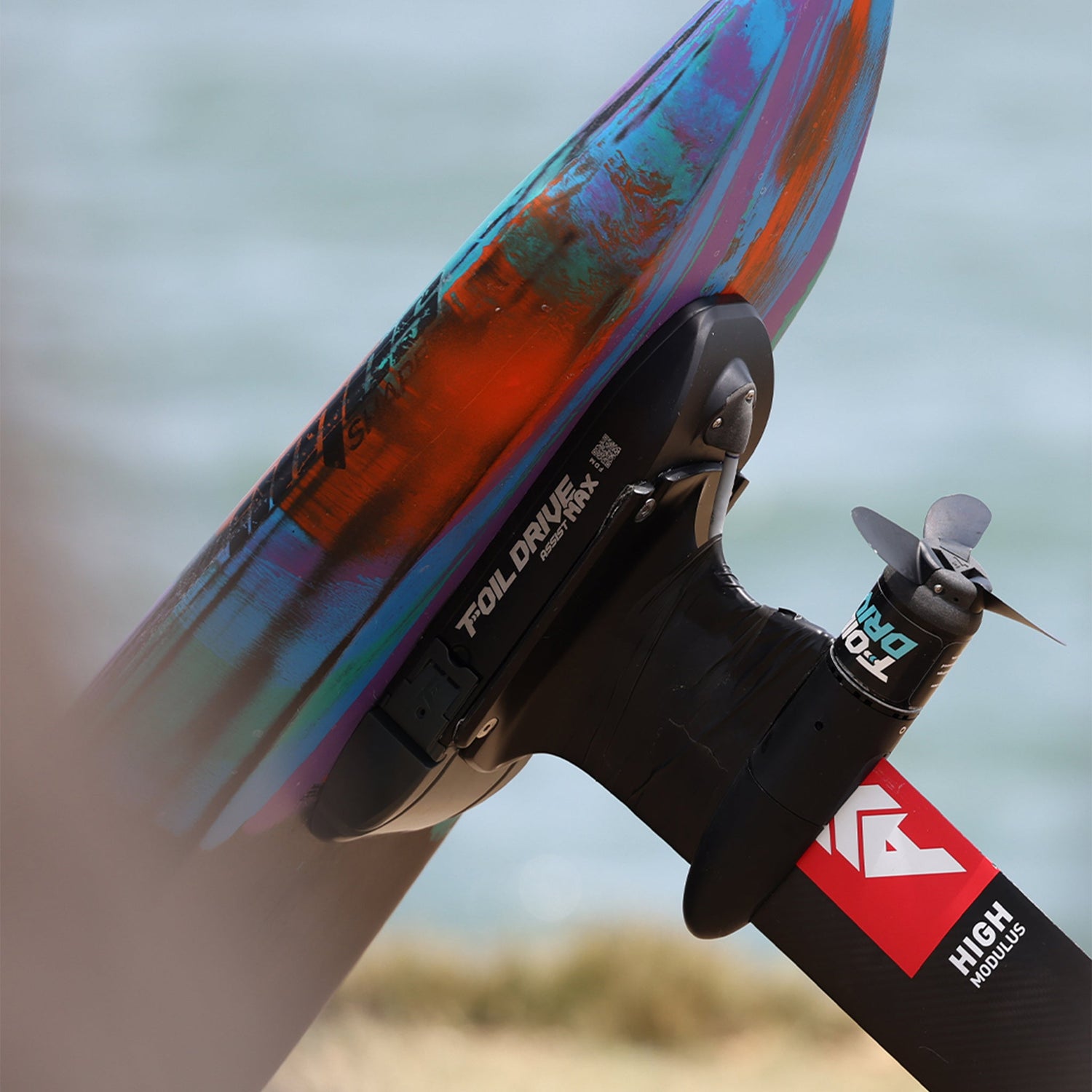

Foil Drive Assist MAX+

Foil Drive Assist MAX+

Built on the 43v architecture, the Assist MAX+ offers our most durable one-piece battery design, all while retaining the compact, lightweight and balanced package that made the original MAX so versatile.

From tiny bumps to the biggest waves of your life, MAX+ gives you the freedom to keep flying regardless of the conditions. Surfing, light wind wing, downwind, wake, flatwater or E-Foiling, it adds more power, runtime and range to practically any existing foil setup you have already or want to ride, making every session easier to access, more productive and more fun.

Simply choose your desired setup below.

What's included

Battery System

Choose Your Battery

Motor System

Choose Your Motor
€5.536,14 EUR
€5.536,14 EUR

(VAT Included)

Shipping calculated at checkout.
Details
icon

The Assist MAX+ is the “all-rounder” Foil Drive unit, for riders wanting a powerful foil assist, with minimal compromise on ride feel.

With a unique balance of power, runtime and ride feel the MAX+ does everything well without asking you to give up much of anything and is best for:

  • Longer surf sessions with higher wave count, in more conditions
  • Motor upwind to unlock downwind runs without a shuttle
  • Easier and faster Flatwater Take-Offs
  • Practice pumping without wasting energy on repeated tow or surf starts
  • Chase and ride wake swells from passing boats
  • Fast self-recovery between falls for more ride time.
  • Extra thrust to unlock smaller boards and foils with more confidence and runtime
  • Unlimited progression regardless of the conditions.
  • All rider types and abilities under 100 kg using small to mid-length boards
  • Advanced riders wanting to prioritize weight saving, without compromise on power
Tech Specs
icon
  • System Voltage: 43.2V
  • Battery Capacity Range: 648Wh
  • Max Thrust: 35.5kg
  • Minimum Install Weight*: 6.71 kg
  • Dimensions with Battery: 540x125x55mm
  • Peak Power (Boost): 2150W
  • Sustained Power: 1750W
  • Peak Horsepower: 2.88hp
  • Sustained Horsepower: 2.35hp
  • App Compatibility: Foil Drive App, Android and IOS
  • Water Rating: IP68 Water and Dust Resistance
  • Certified:UN38.3, CE, FCC, WEEE, RoHS, PSE, ICES, IP68

*Install weight includes Unit, Battery, Integrated HP Motor, Three Blade Hub and Props, Nosecone (If Applicable) - Retrofit install with mini pod mounted at 20cm increases install weight by 0360g

What’s Included
icon

Chosen Battery Option
Chosen Motor Option
Chosen AC Lead
___

Foil Drive MAX+ (In Case)
V3 Controller with Bump Guard Installed
43V Standard Charger 12amp
4x Titanium T40 M7 Split Bolts Silver

Controller Accessories Case
- USB-C Charge Pad and Cable
- Bump Guard Variation
- Wrist Leash
- 1.5mm Allen Key for Bump Guard Removal

Tools and Hardware
1x T40 Driver
1x T30 Driver
1x 2.5mm Black Titanium Driver
1x Pick Tool
2x 15g Battery Grease
2x Nose Cone Rocker Pads
3x M4 10mm Titanium Motor Plug Bolts
1x Anode Replacement Kit
1x Replacement Electronics Box O-Ring (Blue)
1x Replacement Motor Cable O-Ring (Blue)
1x Replacement Motor Cable O-Ring (Red)
1x Microfibre Towel

Other
2x Mast Foam Tracks Guides
1x Tool Caddy (Inside MAX+)
1x Sticker Pack

User Manuals

Compatible With
icon

Important: Existing Assist MAX batteries are not compatible with this system.

FM+ 430 Battery (Coming Soon)
FM+ 650 Battery
43V Foil Drive Charger

FM+ Batteries are also compatible with Foil Drive Fusion (requires FM+ Battery Adapter)

Retrofit High Power Motor Kit
Integrated Mast High Power Motor
Retrofit Standard Motor Kit

V2 Controller
V3 Controller

Foil Drive Assist MAX+

Add to cart
€5.536,14 EUR
€5.536,14 EUR

Who rides the Assist MAX+?

If you're looking for one system that does everything well, Assist MAX+ is built for you. It combines the proven Fusion platform with the ideal balance of power, runtime and weight for every session.

COMPARE SYSTEMS

Surf foil

Higher Wave Count Less Paddling

DOWNWIND FOIL

More Conditions, Safety and Reliability

Pump Foil

Skill, Flow, Control Your Power, Your Pace

Flat water

Explore and Glide

Wing foil

More Conditions Smaller Wings

The all-rounder, redefined.

FAQS

Frequently asked questions

What is the Assist MAX+?

The Assist MAX+ is our most versatile Foil Drive system, delivering the ideal balance of power, weight, and runtime. Built on our latest Fusion 43V platform, it's designed for riders who want one system that performs across a wide range of foiling disciplines.

How does the Assist MAX+ compare to the original Assist MAX?

The Foil Drive Assist MAX+ steps into the generation that Fusion has already proven on the water. It directly replaces Assist MAX, bringing increased power, a tilt sensor and improved Bluetooth technology, with unlocked runtime from the new FM+ battery range

While the technology has advanced, the philosophy remains the same. The Assist MAX+ is still designed for riders who want the perfect balance of power, weight, and runtime across a wide range of foiling disciplines. The new FM+ battery family also gives you the flexibility to choose between longer runtime or a lighter setup as new battery options become available.

How does the Assist MAX+ compare to Fusion?

The Assist MAX+ is optimised for balance, offering an excellent mix of power, weight, and runtime.

Fusion is built for riders who want maximum thrust and the longest possible sessions. It delivers our highest performance but comes with additional size and weight.

Are my current 40V Assist MAX batteries compatible?

No. The Assist MAX+ uses our new 43V battery platform and is only compatible with the latest FM+ battery range.

Can I share batteries between Assist MAX+ and Fusion?

Yes. The new FM+ battery range is compatible across both Assist MAX+ and Fusion. Fusion requires the FM+ Battery Adaptor, while the Assist MAX+ accepts the batteries directly.

Can I try the Assist MAX+ before I buy?

Absolutely. Visit one of our authorised Foil Drive dealers or attend a demo event to experience the Assist MAX+ on the water before making your decision.

Does the Assist MAX+ have travel batteries?

We do not currently have travel batteries for the gen2.5 Foil Drives. However, we are working on a solution for travelling with your Foil Drive.

Still Unsure?

Check out our dealer page or events page to try one in the water!
  • 5 stars: 5 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
G
Gerry Lopez (United States)

Like everything Foil Drive does, the new Assist Max+ is another step up!

Gerry Lopez review photo Gerry Lopez review photo
F
Foil Surf UK Matt Barker-Smith (United Kingdom)

More power ...feels smoother . the trust factor just went up another level

Foil Surf UK Matt Barker-Smith review photo
G
Greg Rowan (United States)

Definitely worth the upgrade!

M
Michael (Australia)

Loving the extra power and runtime, sooooo good.

L
Ludovic Calarnou (France)

It is a real improvement compared to the standard high-power battery. Before buying, I was not sure because of the extra weight of the Max+, but you don't feel it and it feels more balanced on the water. The extra battery life is definitely there. Storage and charging are straightforward with the 43V charger. It's a costly investment, but it really changes the experience and the feeling on the water.
